Neclong

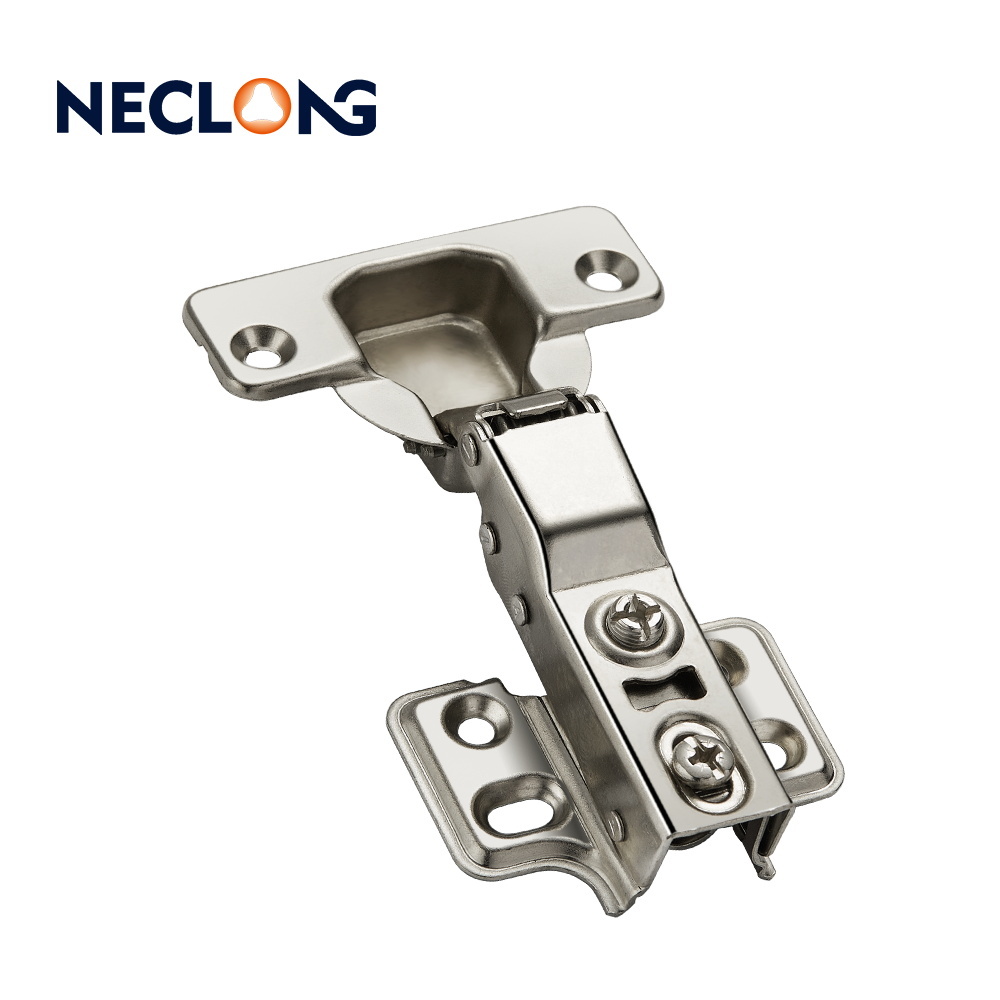

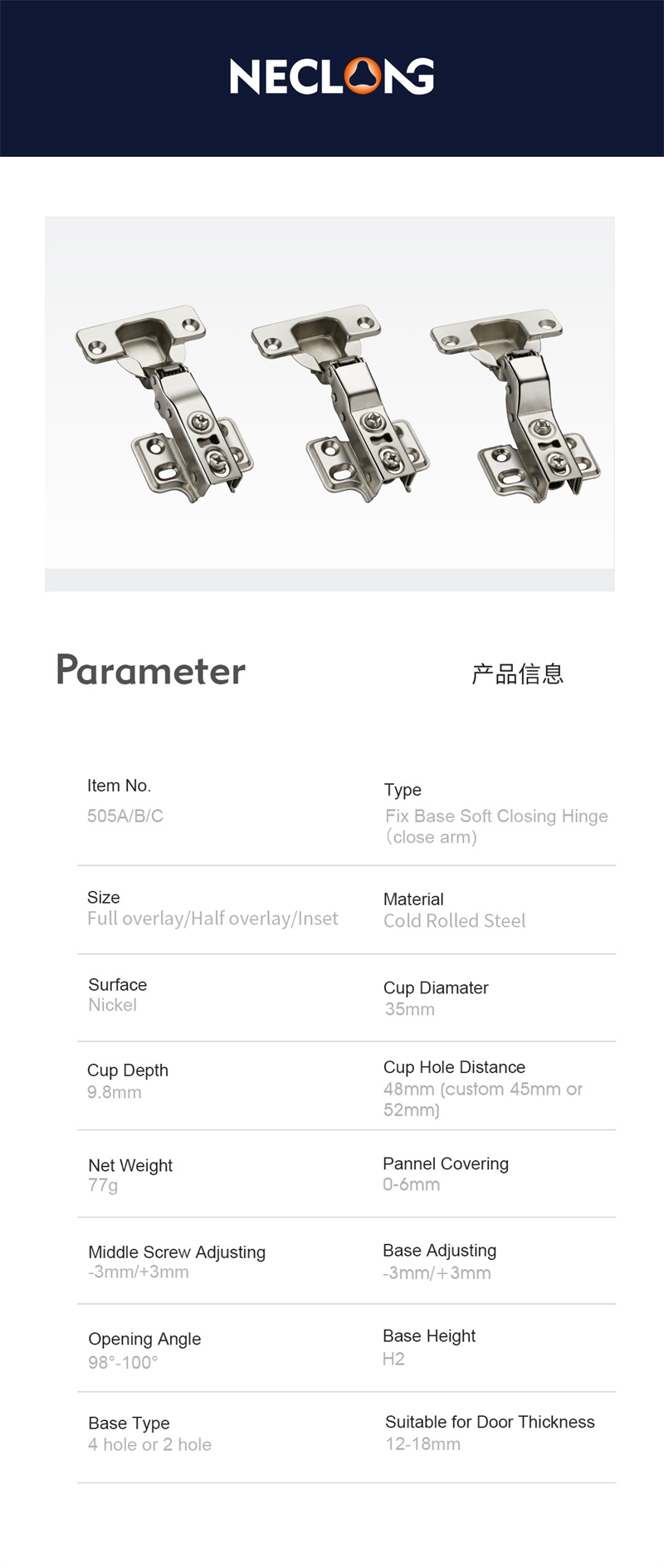

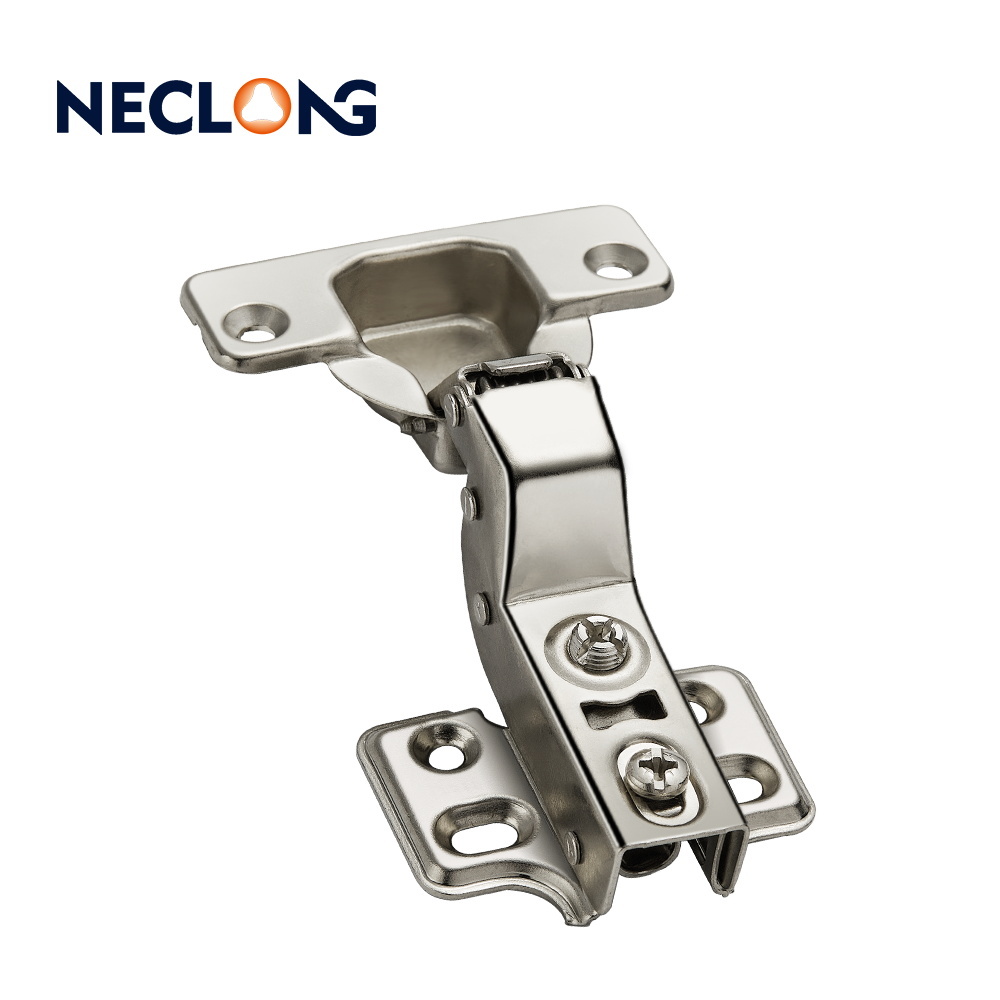

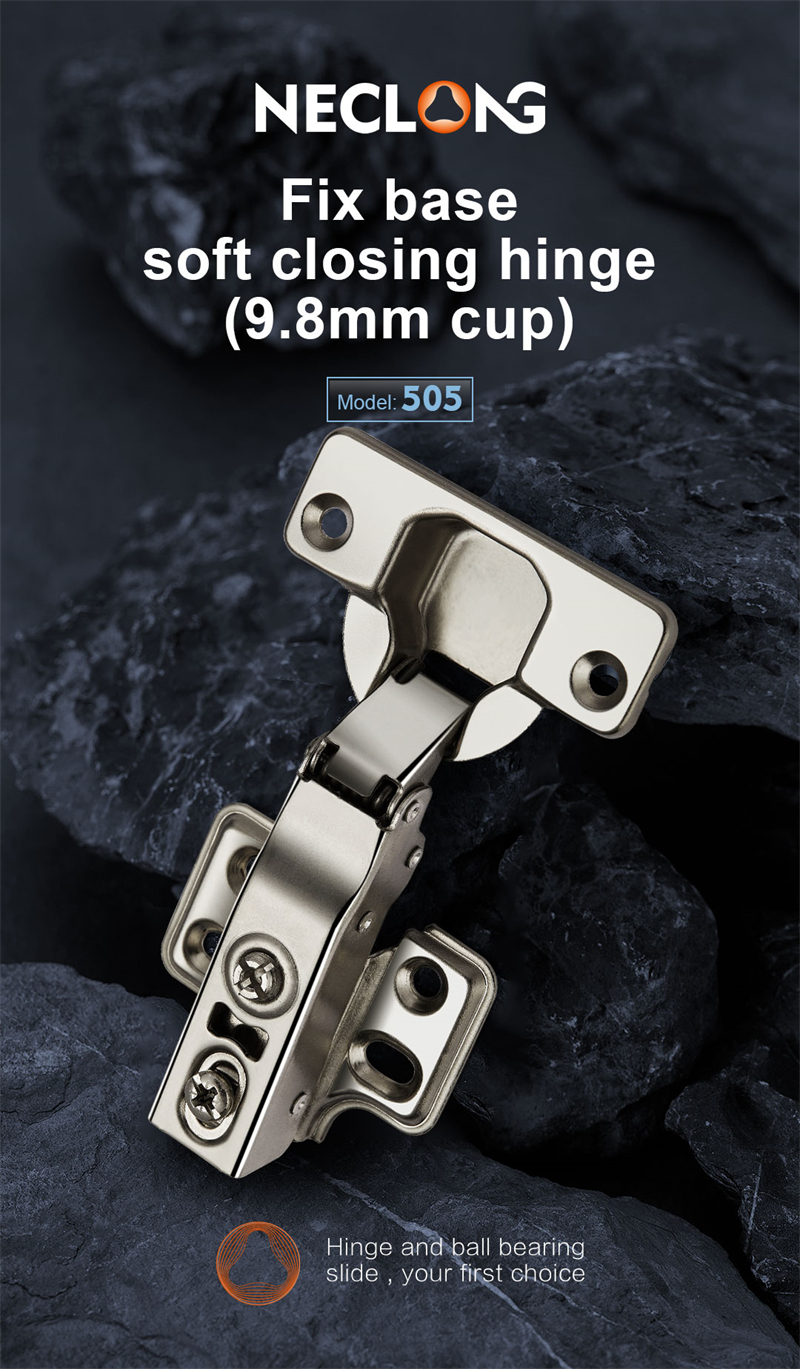

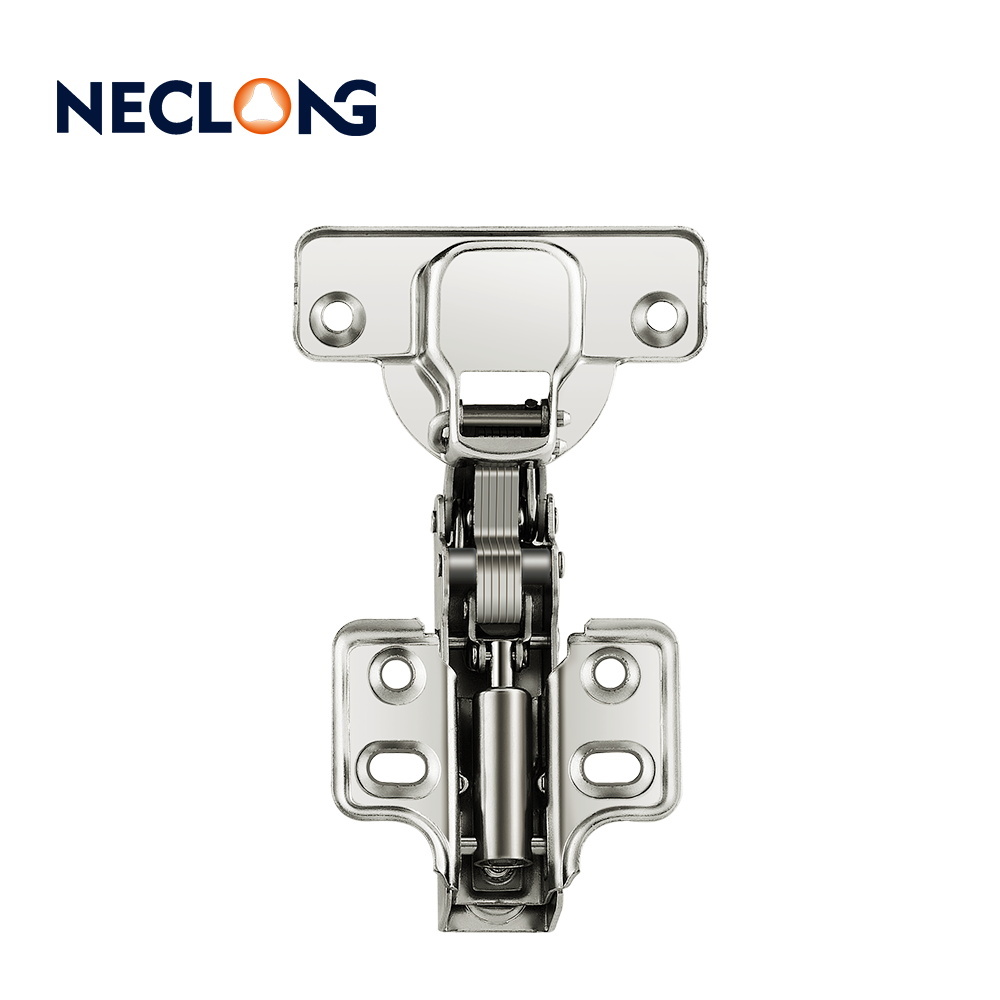

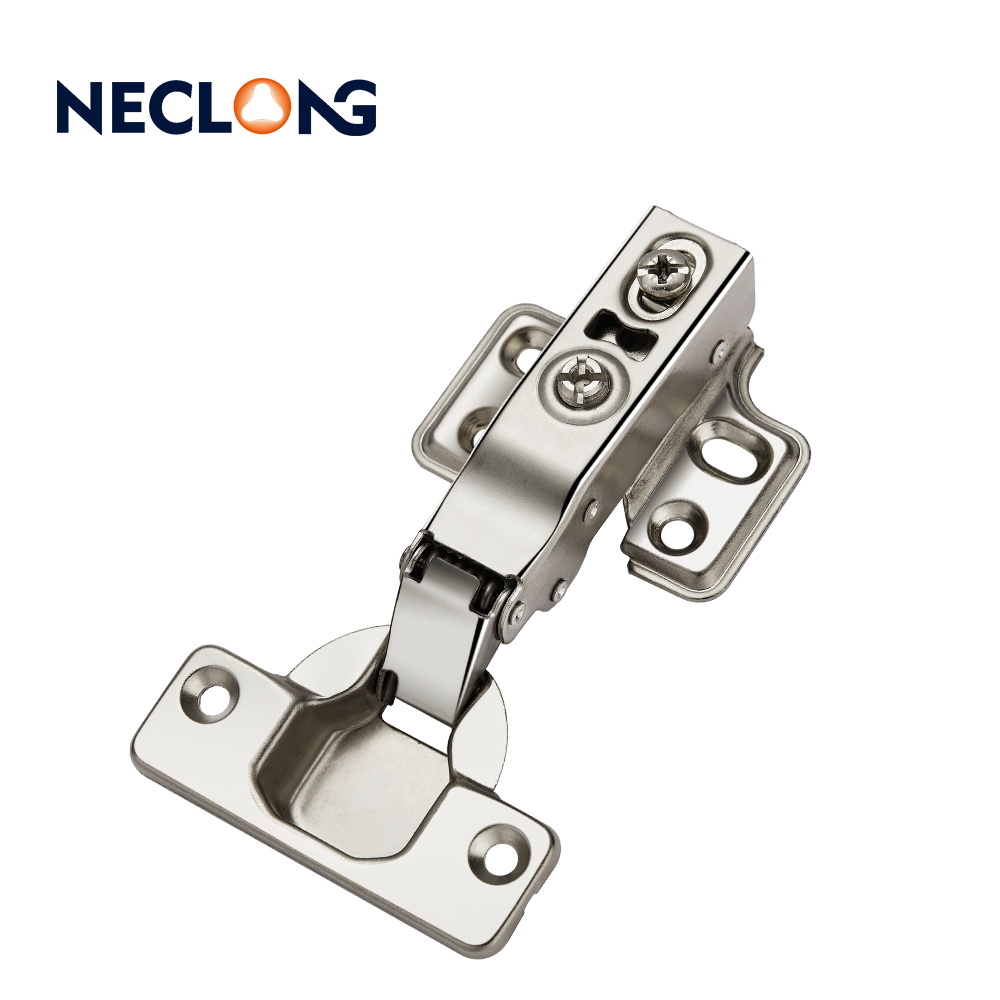

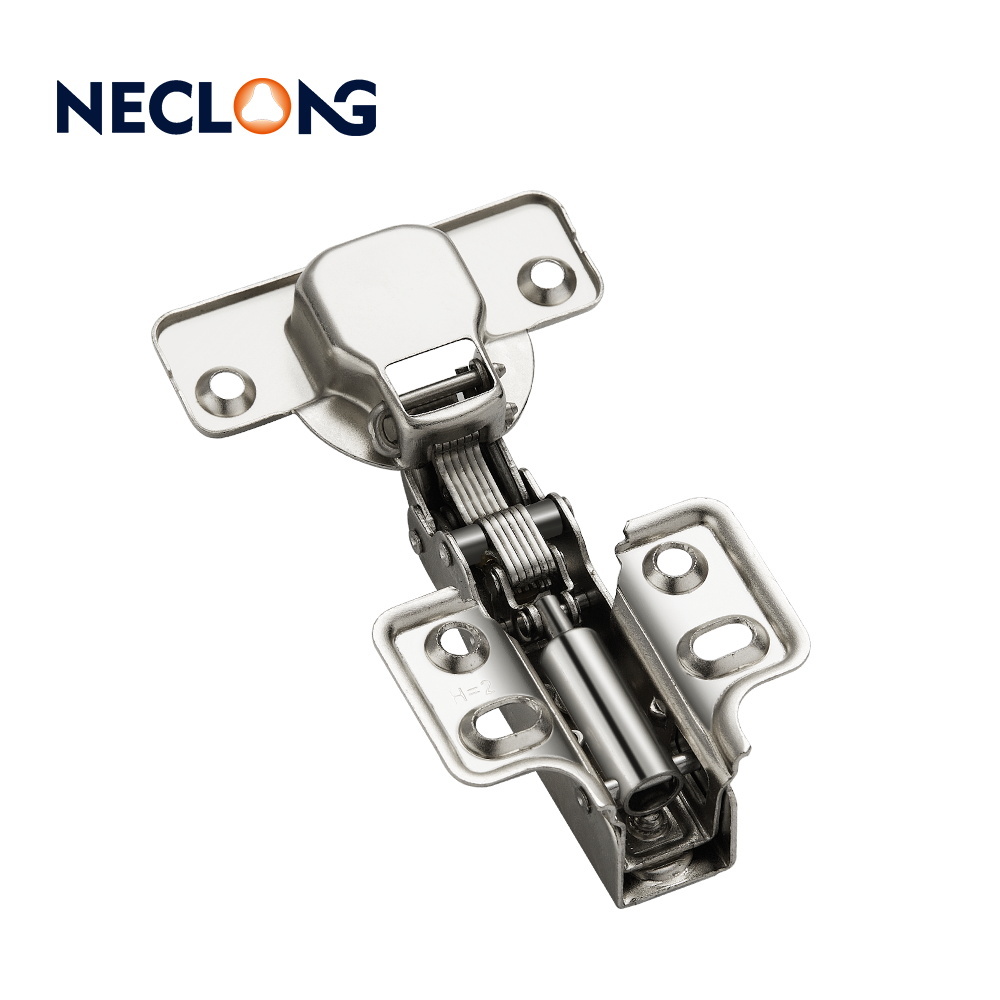

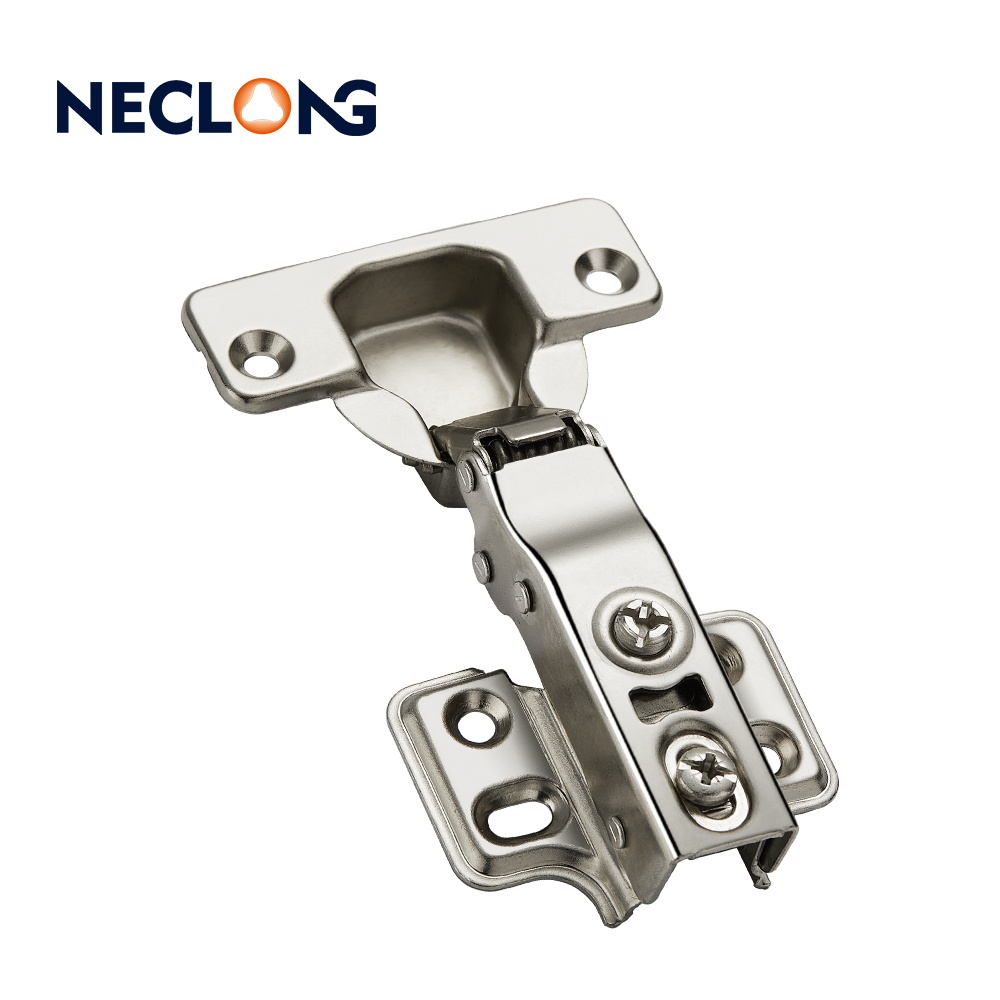

● Product Type: Fix Base Soft Closing Hinge
● Item No.: 505 (Close Arm)
● Size: Full overlay/ Half overlay/ Inset
● Material: Cold rolled steel
● Surface: Nickel
● Cup Diamater: 35mm

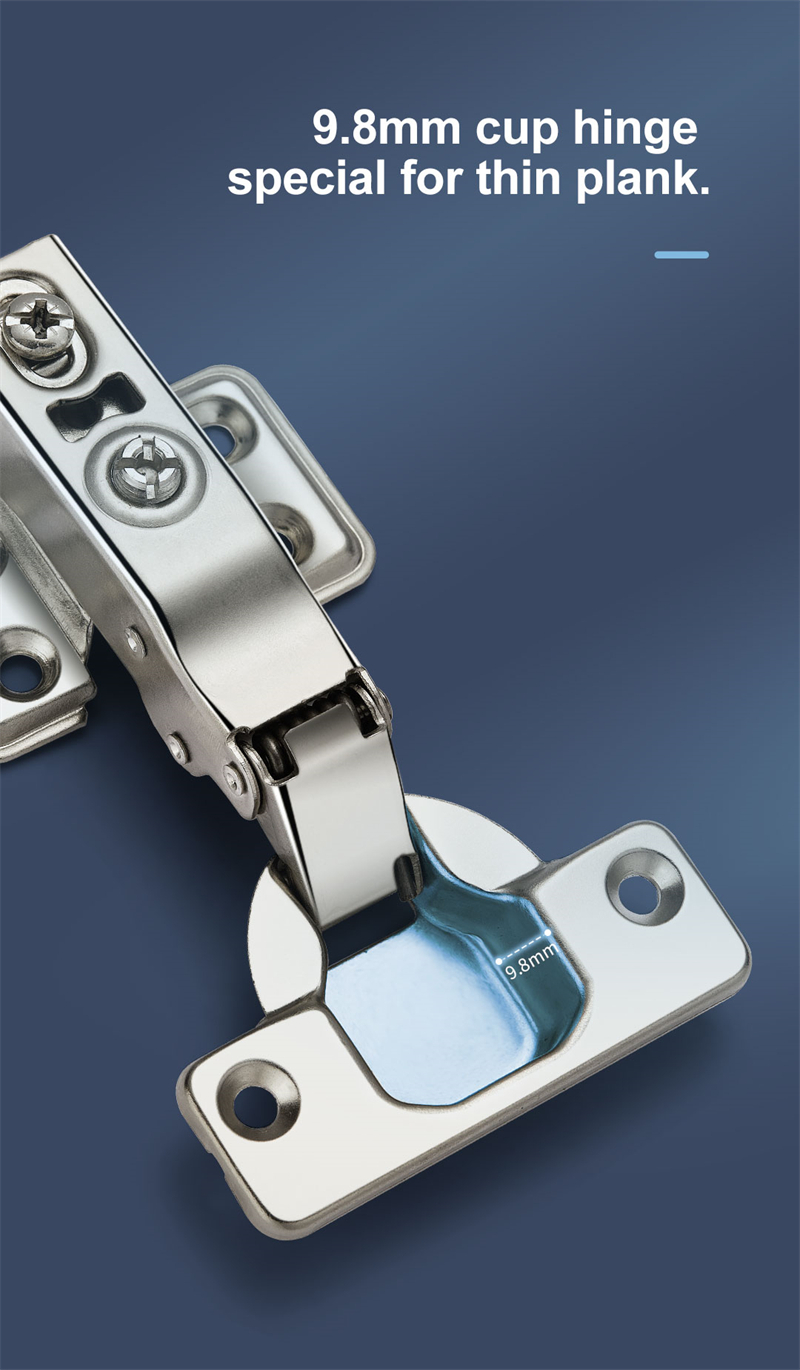

● Cup Depth: 9.8mm
● Opening Angle: 98°-100°
● Cup Hole Distance: 48mm (custom 45mm or 52mm)
● Base Type: 4 hole/2 hole

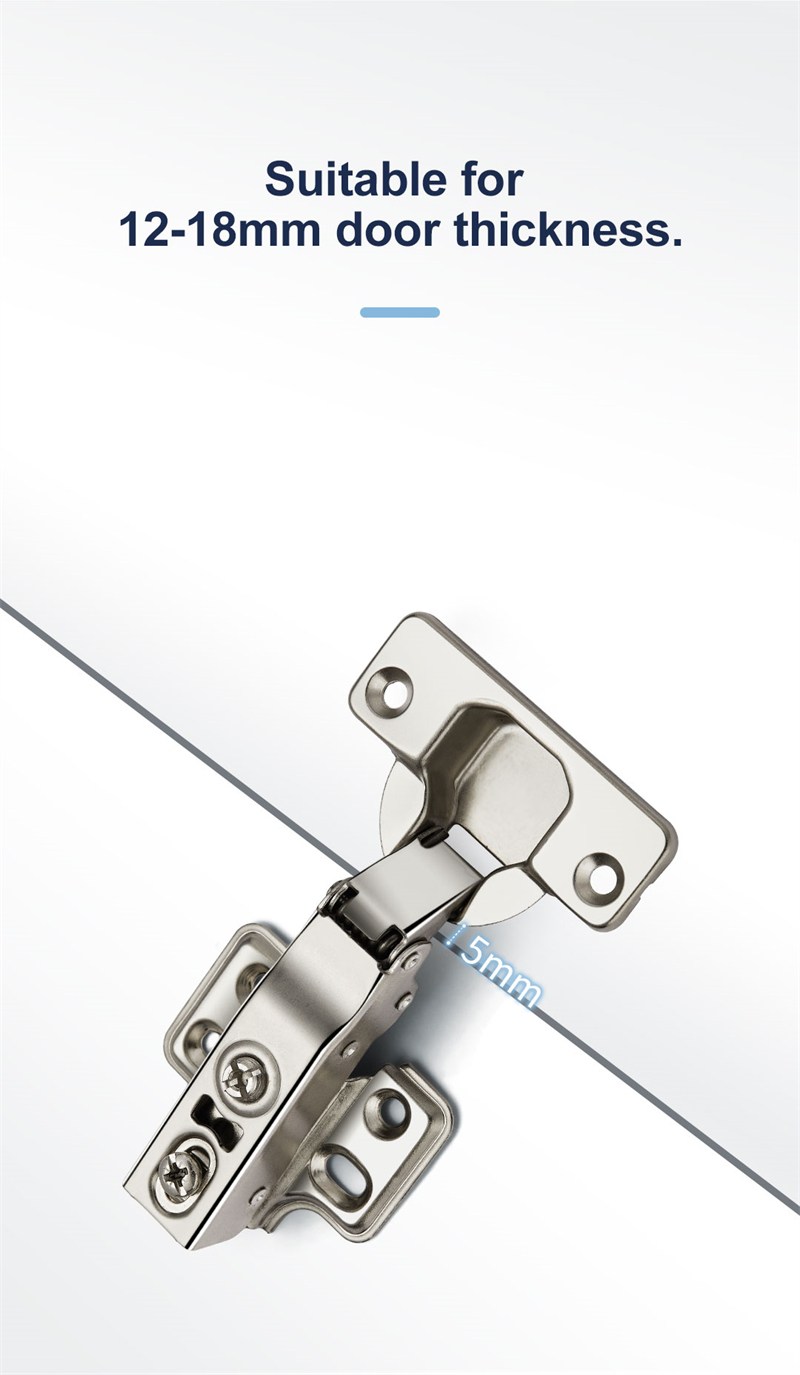

● Suitable for Door Thickness: 14-18mm
● Net Weight: 76g±1g
● Base Height: H2
● Pannel Covering: 0-6mm
● Middle Screw Adjusting: ﹣3mm/+3mm
● Base Adjusting: ﹣3mm/+3mm
