Two Way Normal Hinges without Hydraulic Full overlay Concealed Cabinet door Hinges 4 hole hidden door hinges

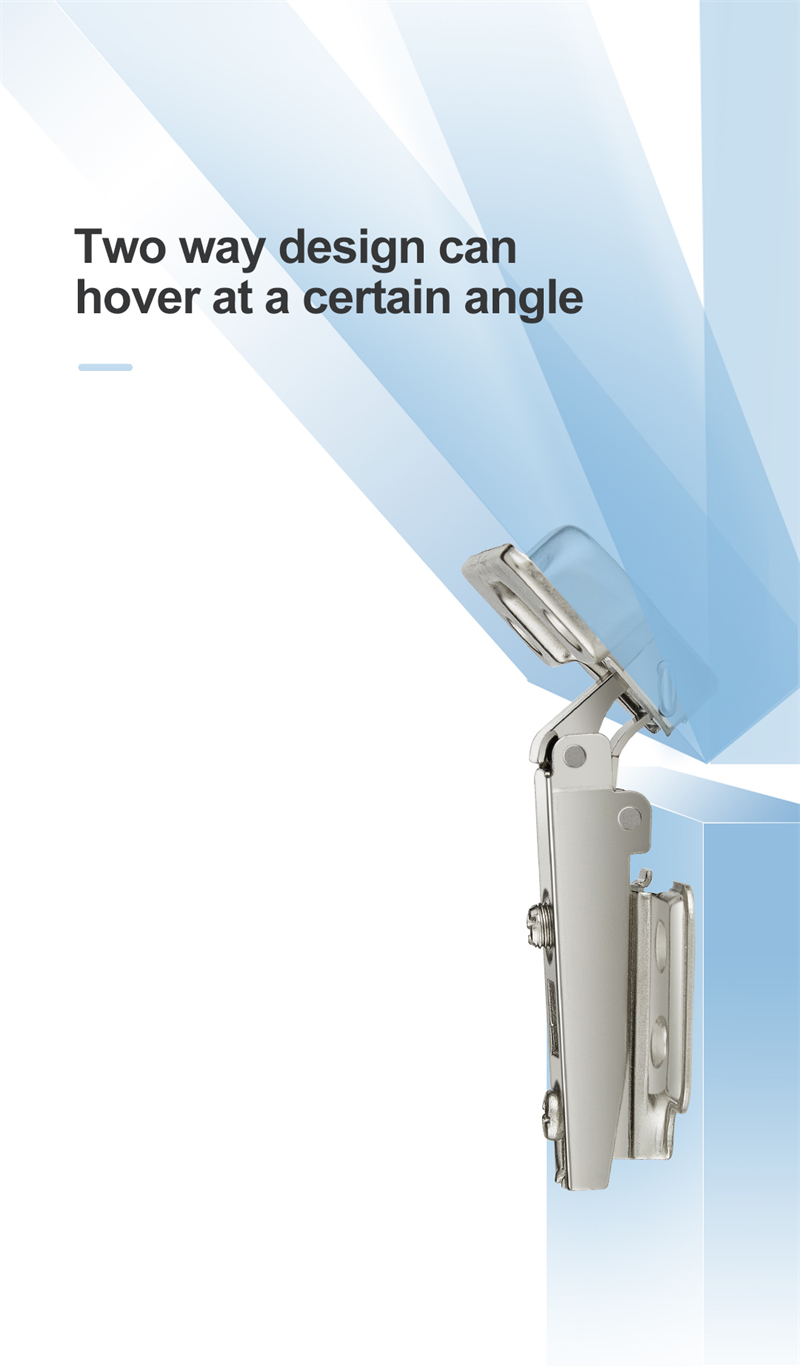

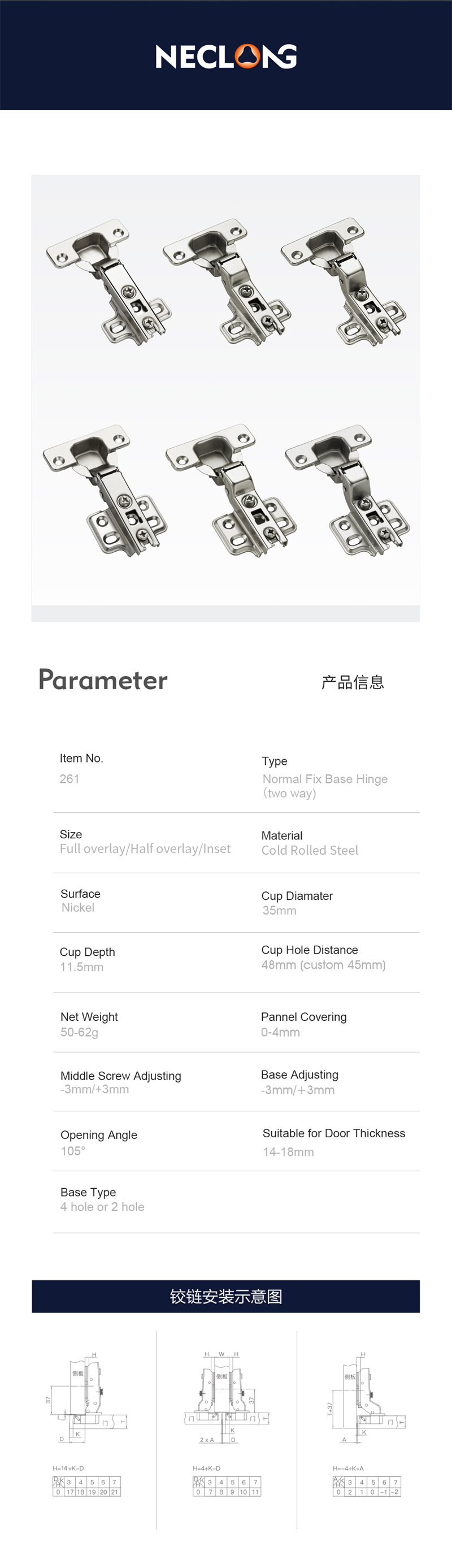

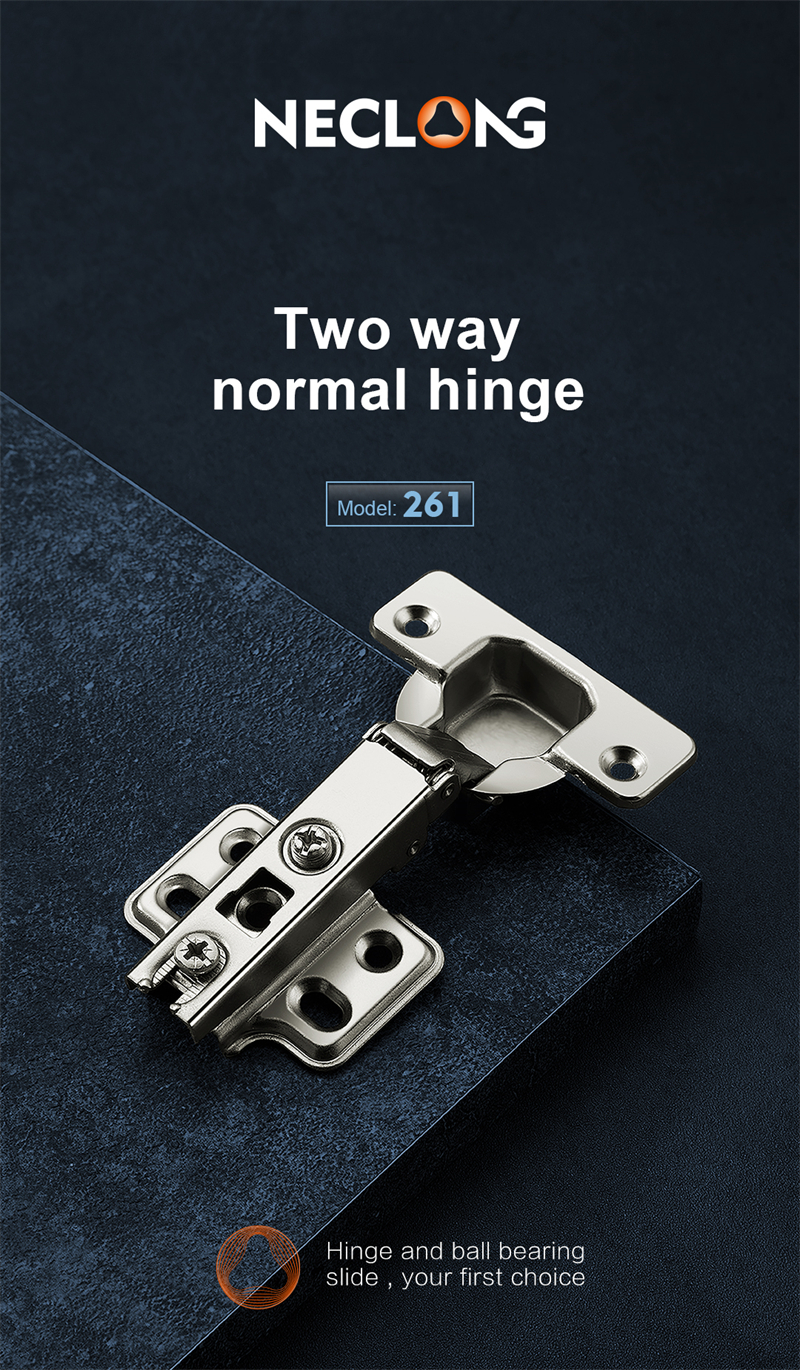

● Product Type: Two Way Normal Hinge

● Item No.: 261

● Size: Full overlay/ Half overlay/ Inset

● Material: Cold Rolled Steel

● Surface: Nickel

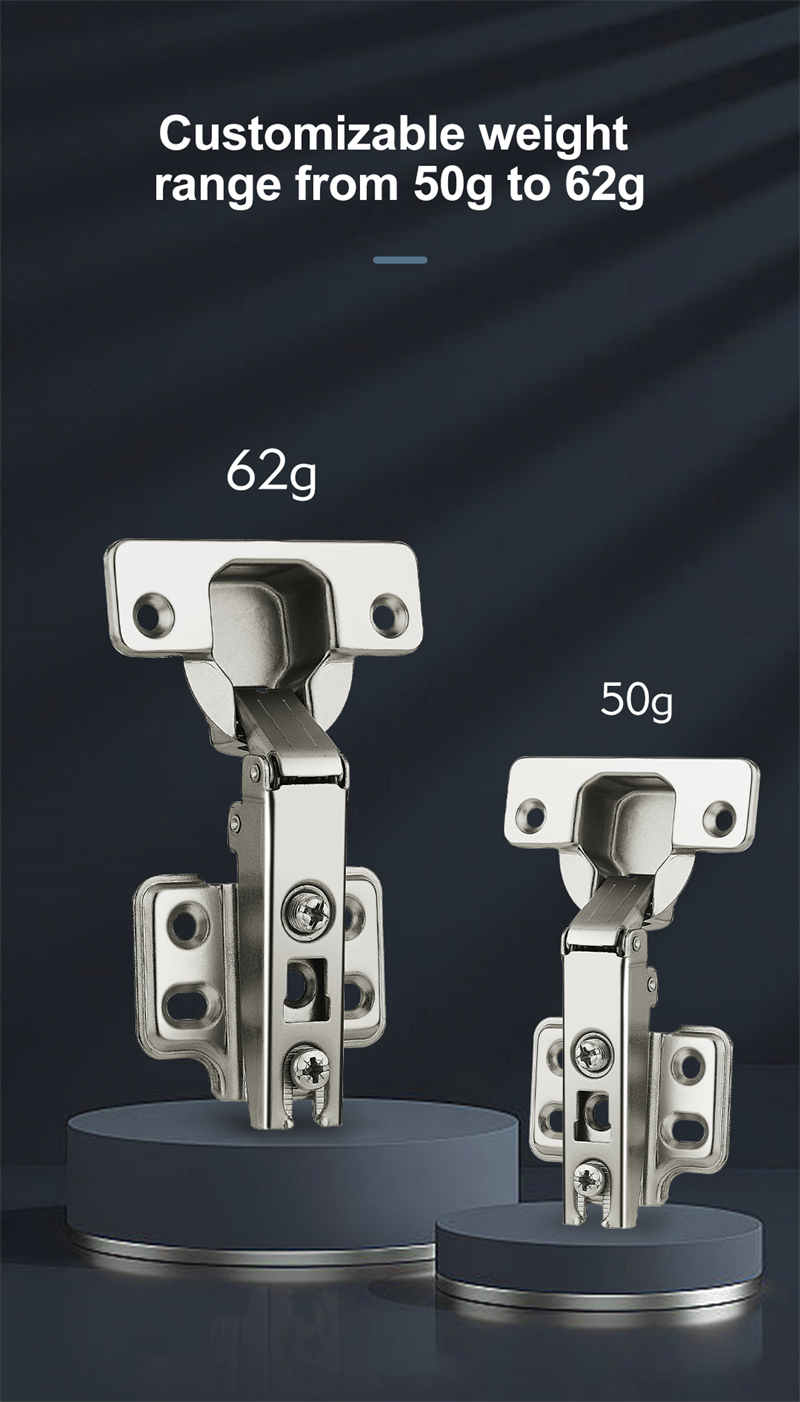

● Net Weight: 50g-62g

● Cup Diamater: 35mm

● Cup Depth: 9.8mm

● Cup Hole Distance: 48mm (custom 45mm or 52mm)

● Opening Angle: 105°-110°/95°-100°

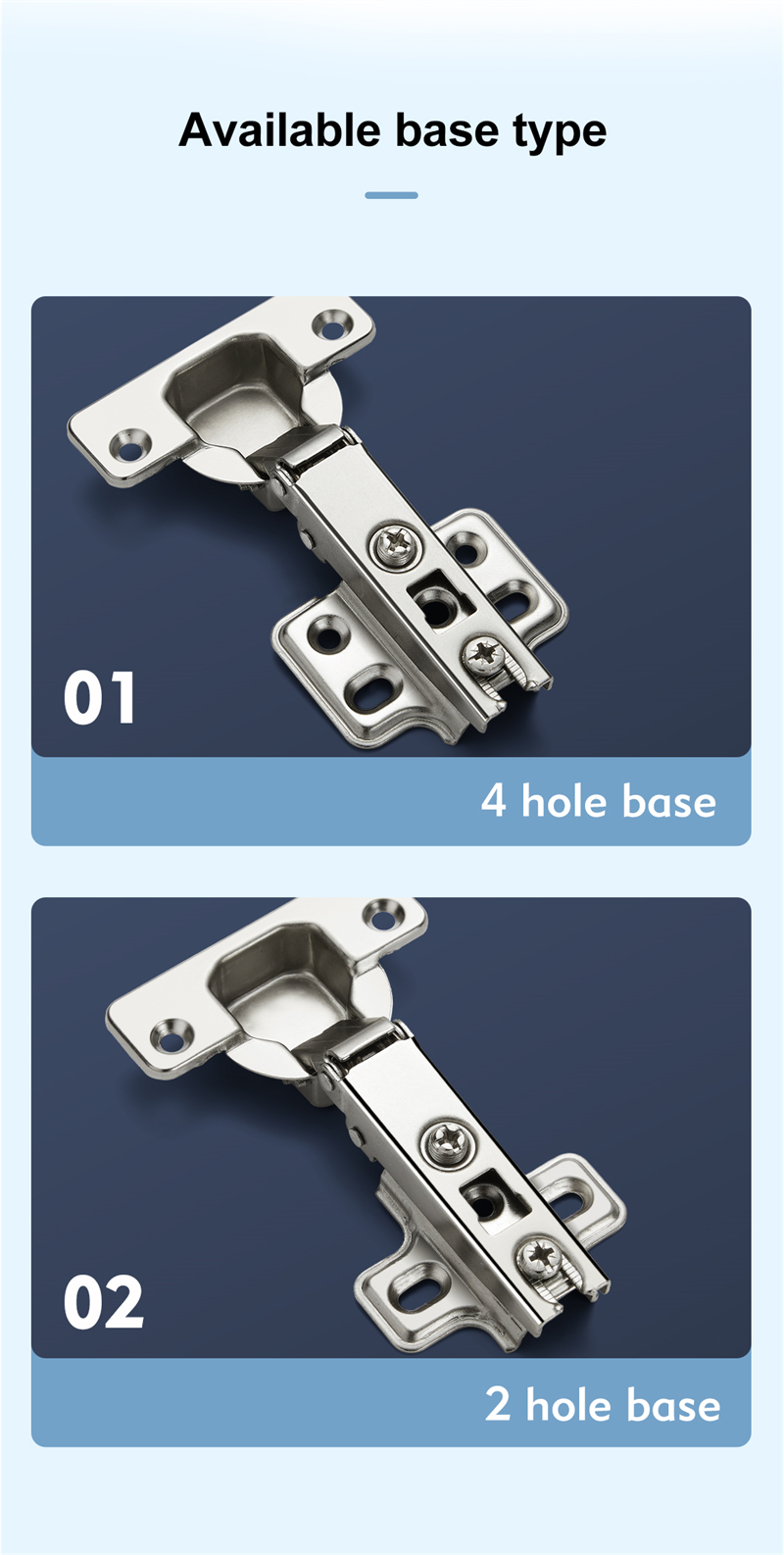

● Base Type: 4 hole or 2 hole

● Suitable for Door Thickness: 14-18mm

● Pannel Covering: 0-4mm

● Base Height: H2

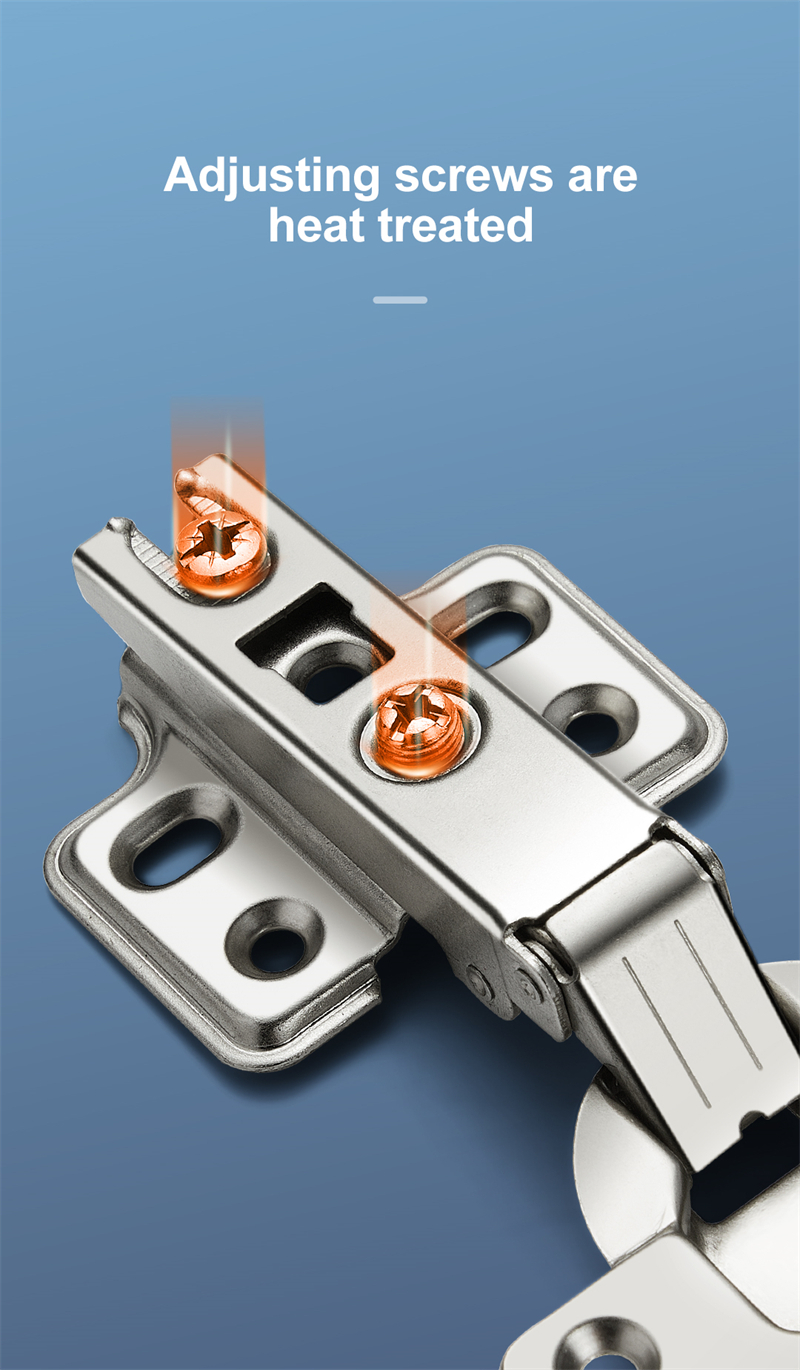

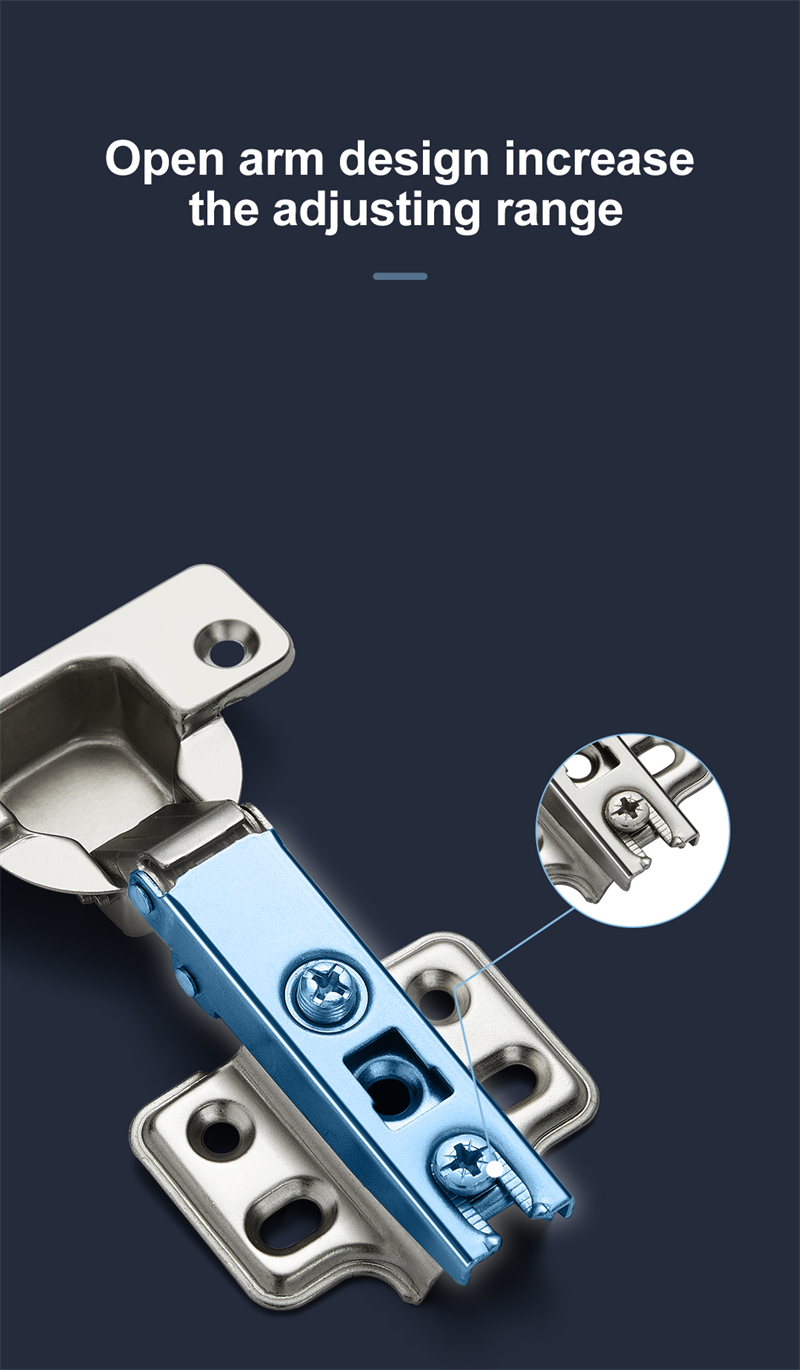

● Middle Screw Adjusting: ﹣3mm/+3mm

● Base Adjusting: ﹣3mm/+3mm

● Clip On Soft Closing Hinge
