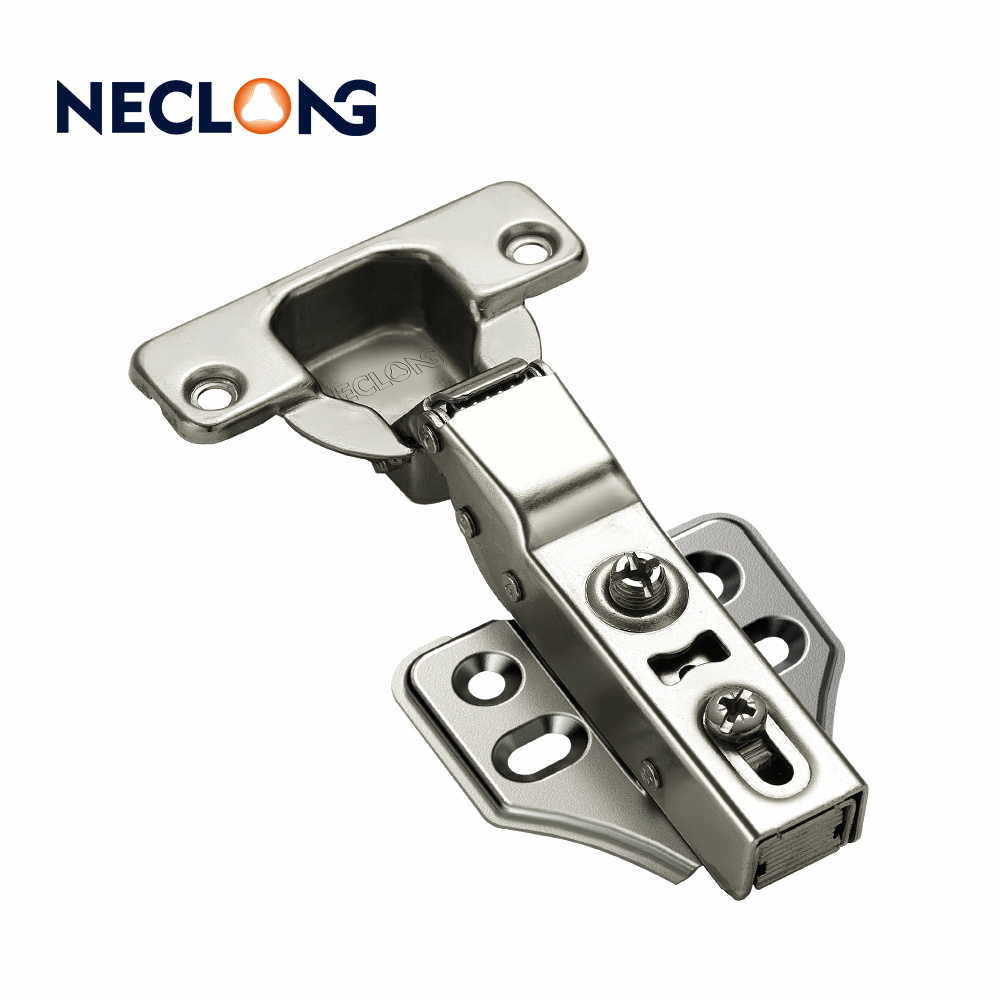

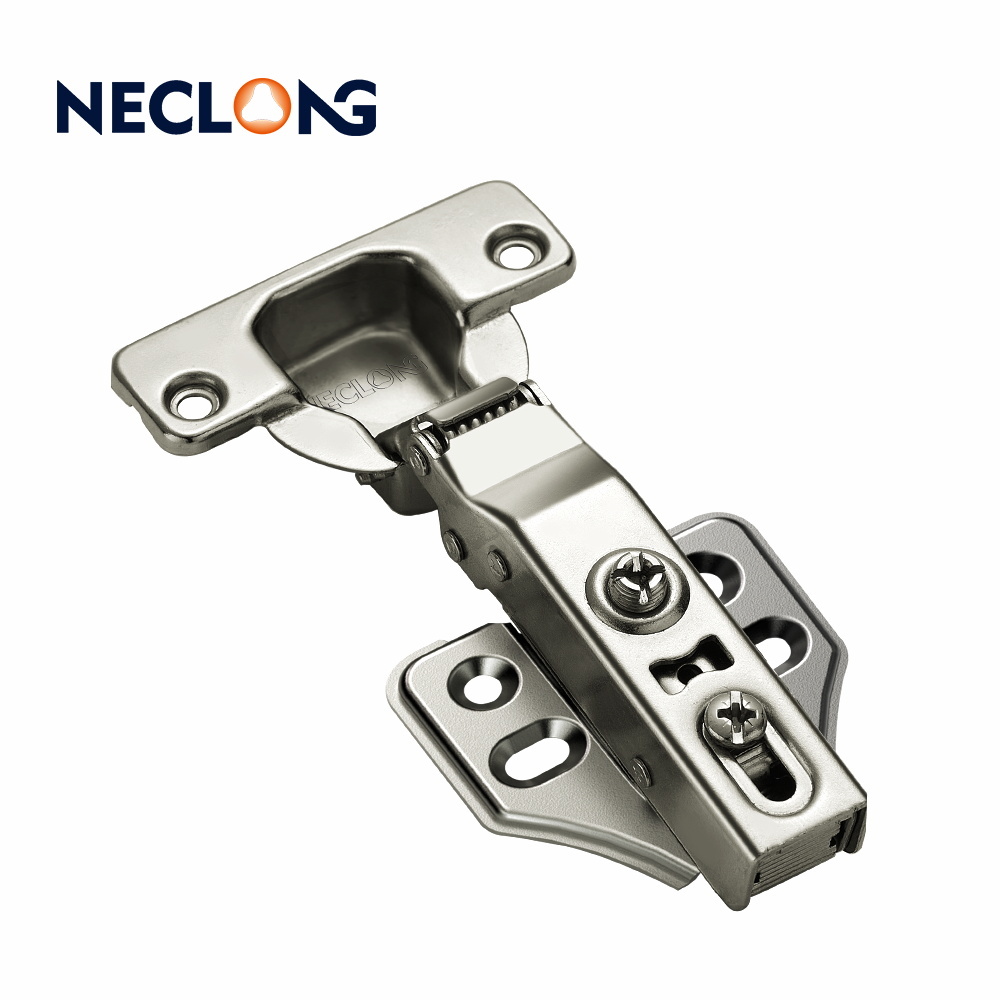

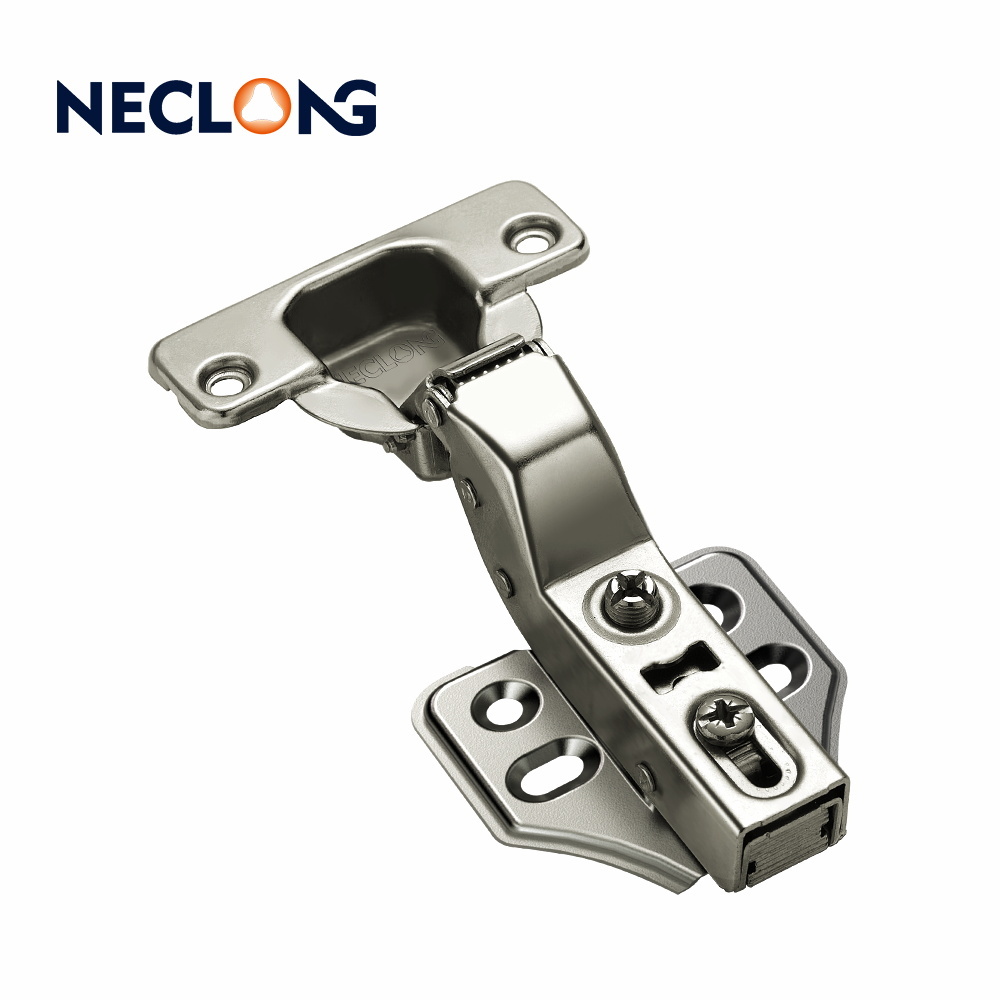

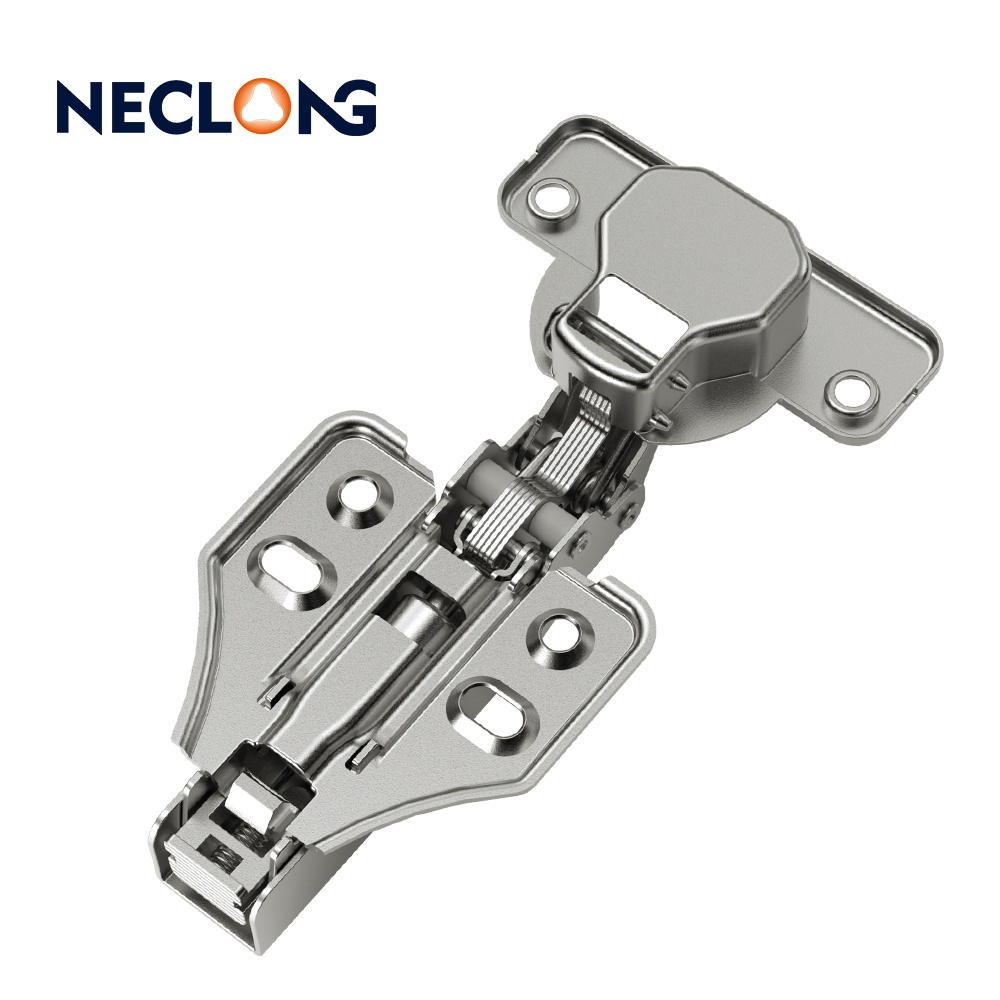

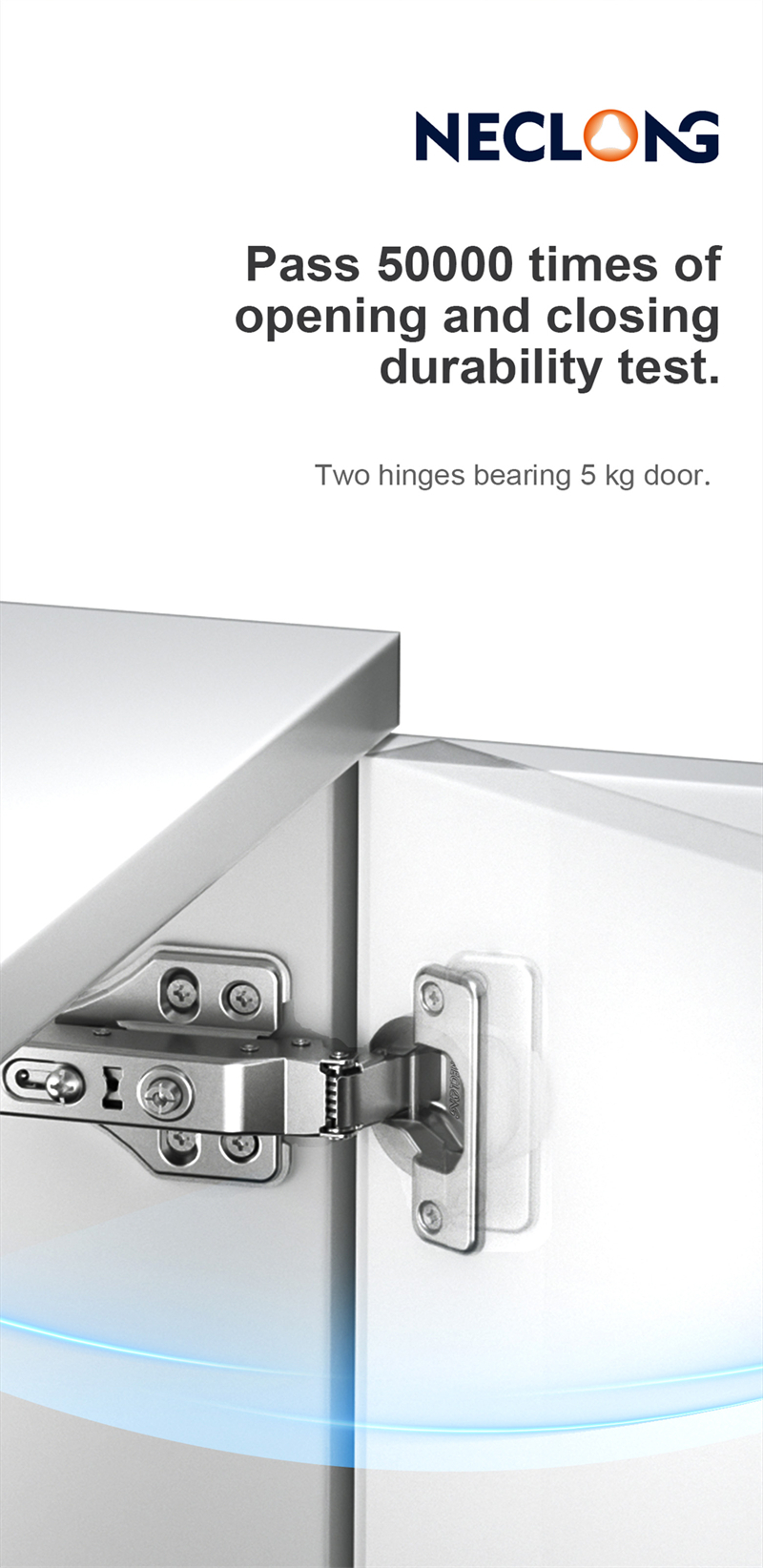

Soft Closing Hinge Hydraulic Clip On Cabinet Door Hinge Butterfly Base Furniture Hardware

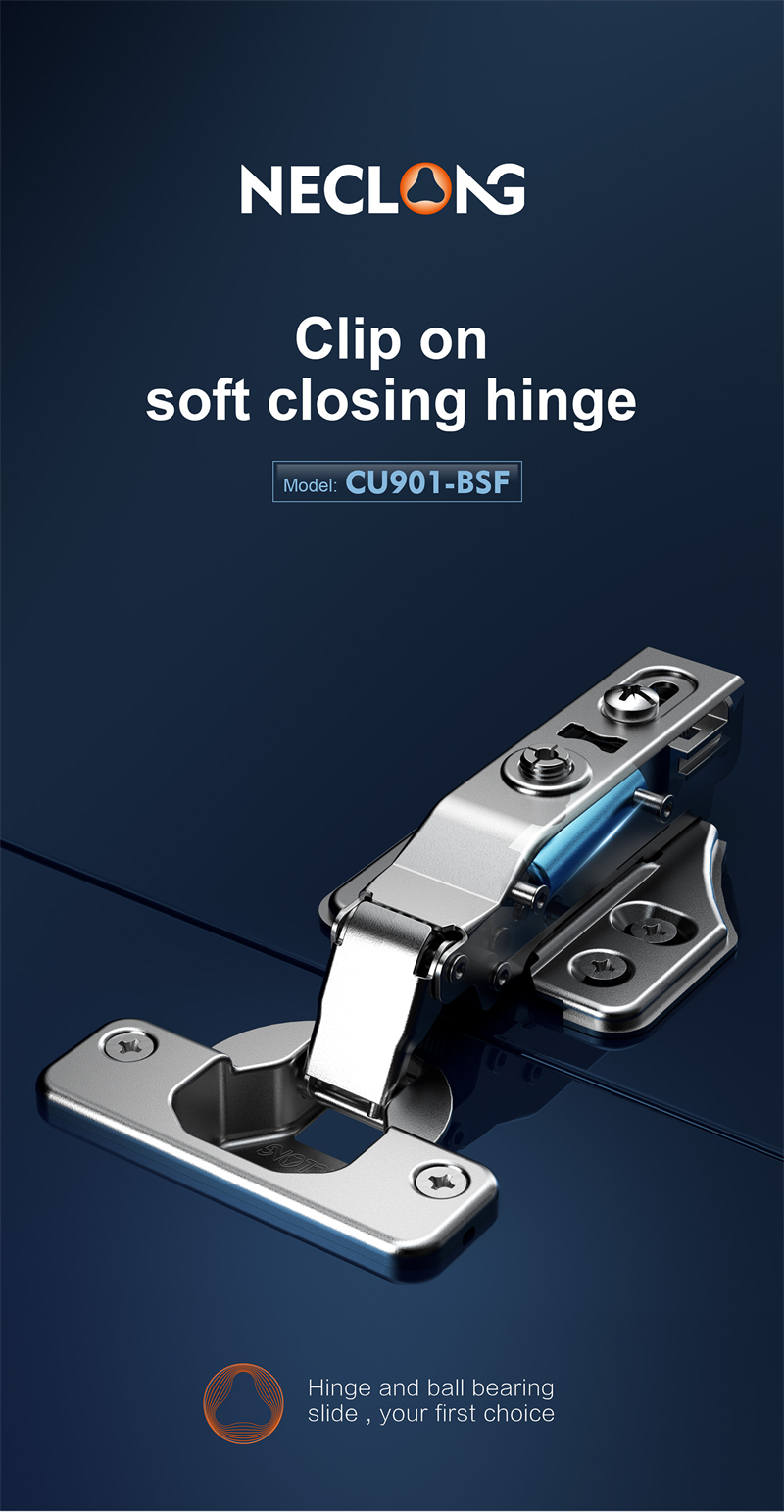

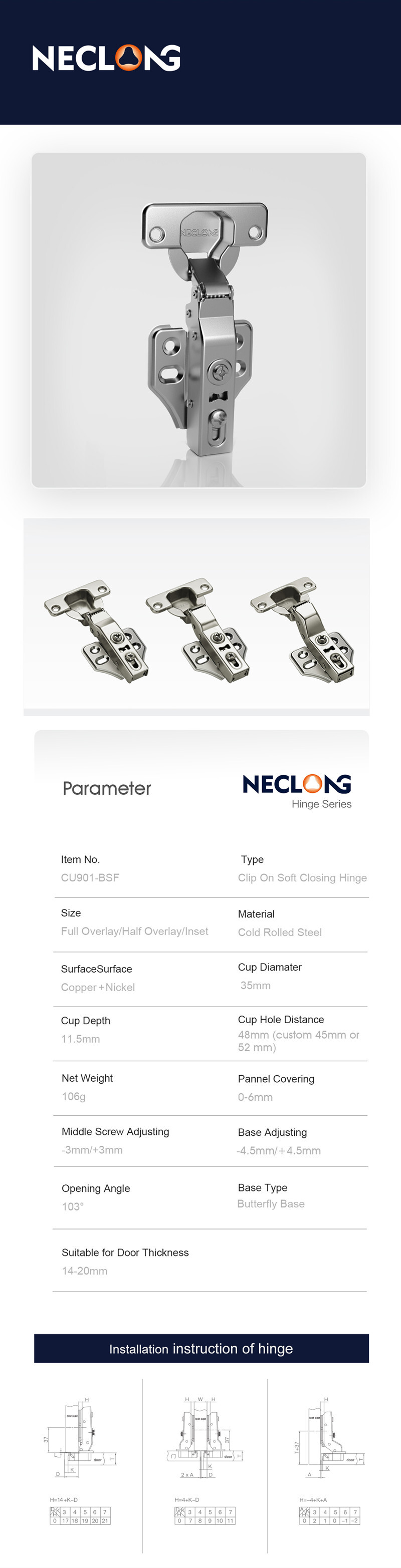

● Product Type: Clip On Soft Closing Hinge
● Item No.: CU901-BSF
● Size: Full Overlay/ Half Overlay/ Inset
● Material: Cold Rolled Steel

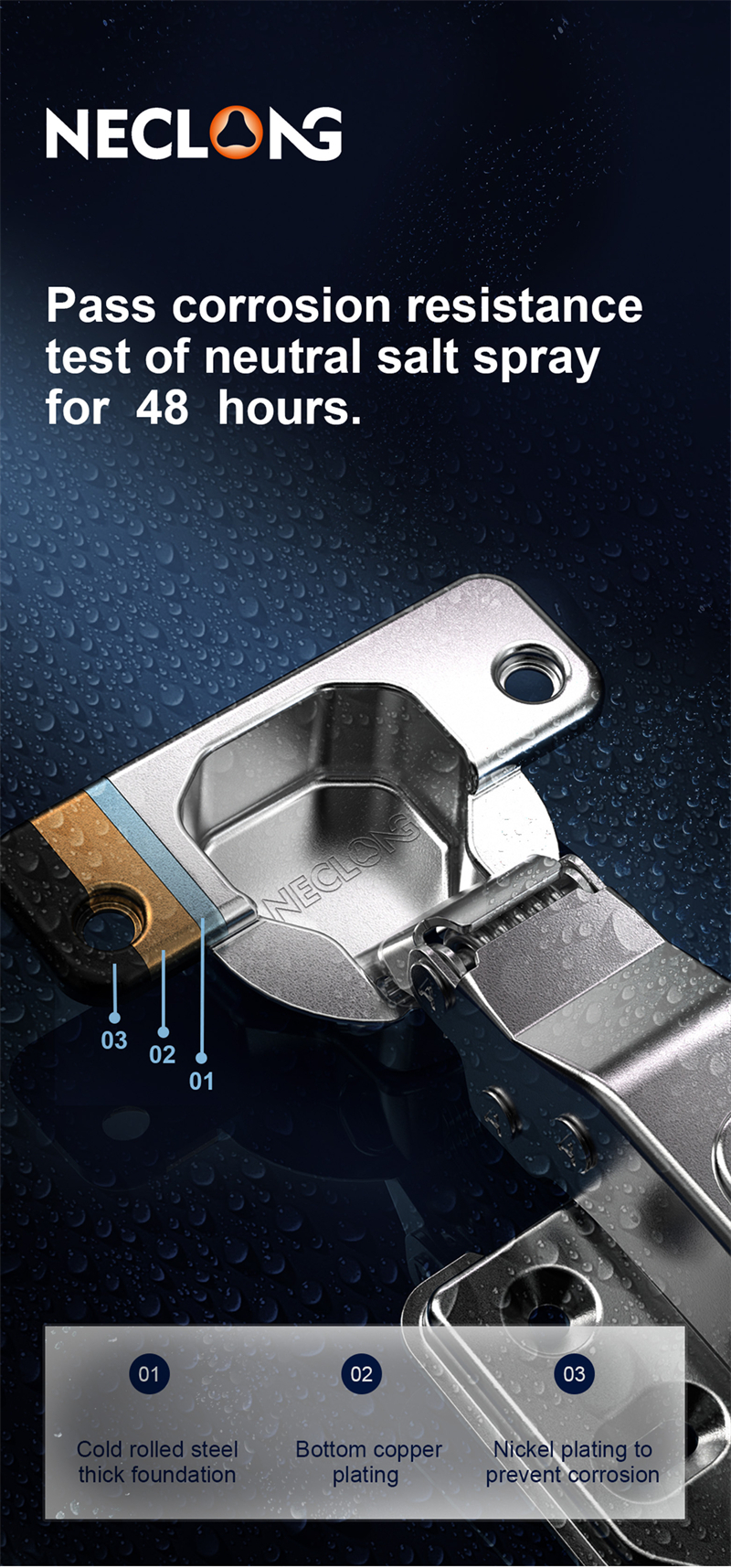

● Surface: Copper + Nickel
● Cup Diamater: 35mm
● Cup Depth: 11.5mm
● Net Weight: 106g±1g
● Opening Angle: 103°

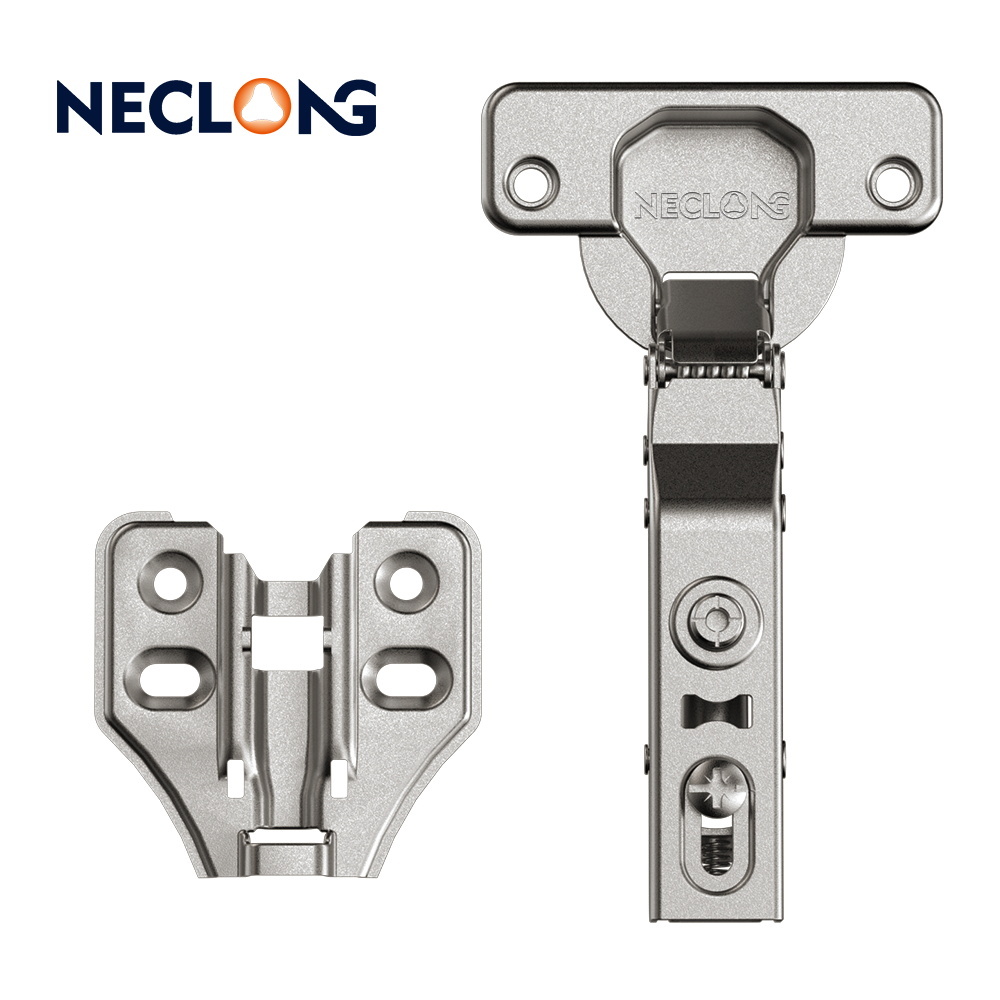

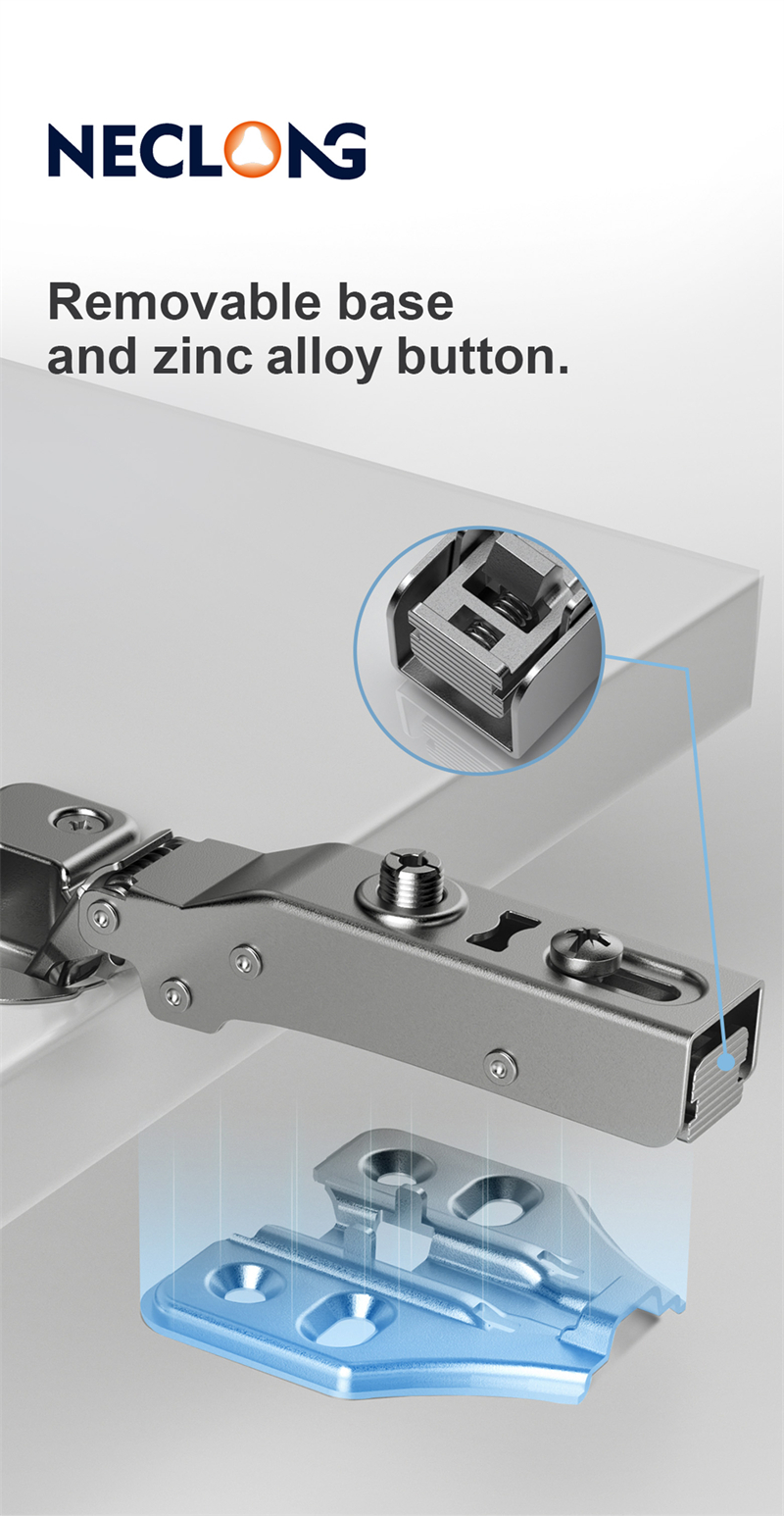

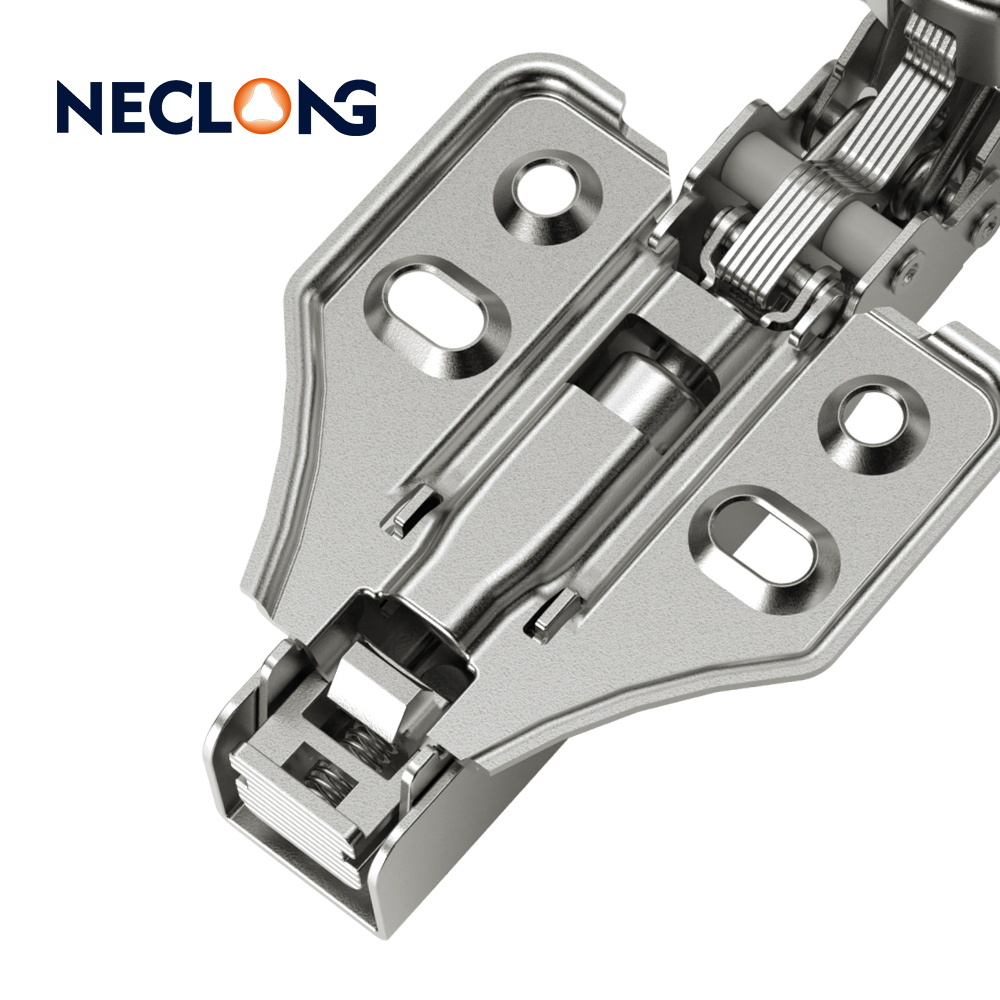

● Base Type: Butterfly Base

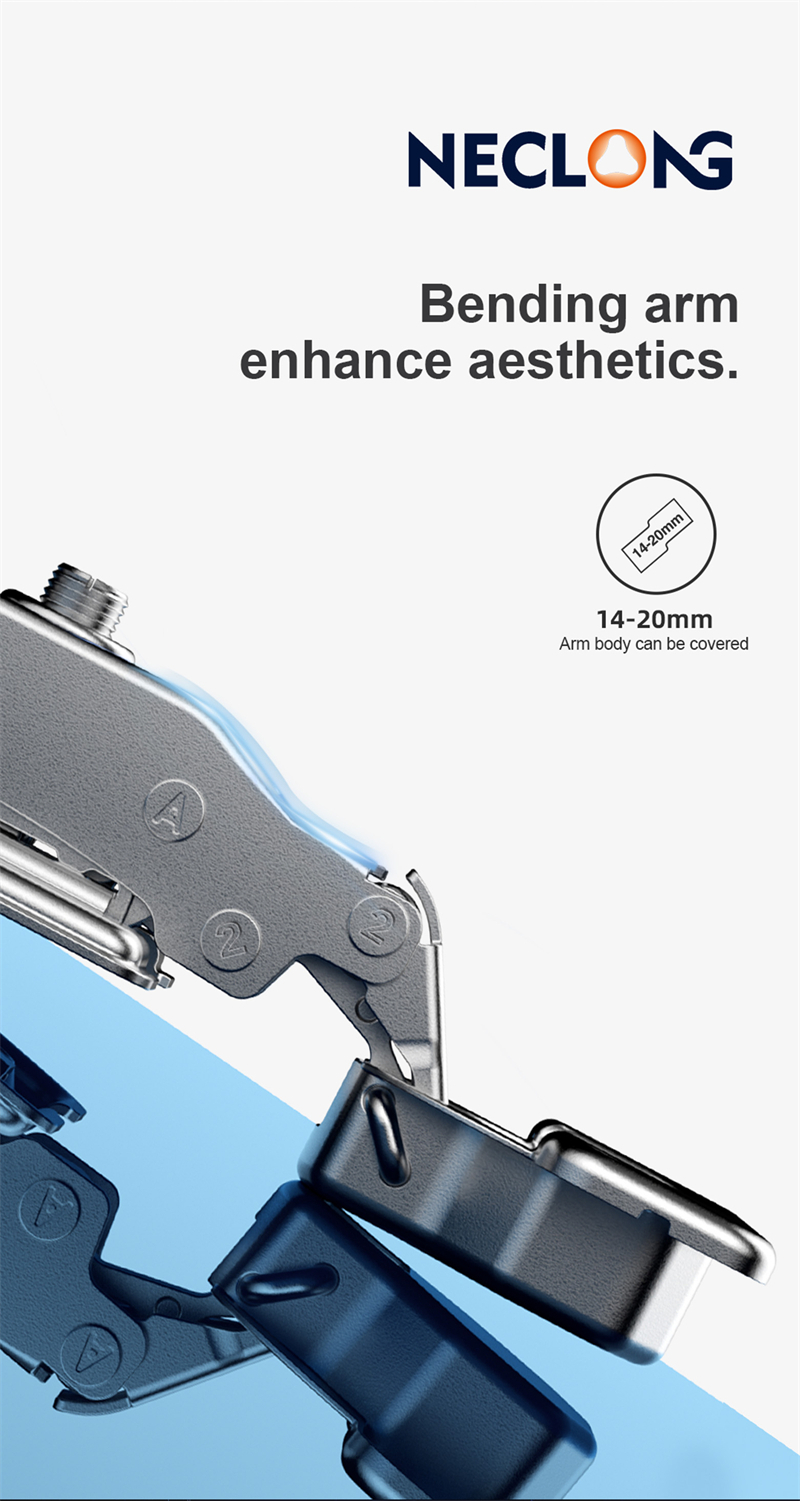

● Suitable for Door Thickness: 14-20mm
● Cup Hole Distance: 48mm (Custom 45mm or 52mm)
● Middle Screw Adjusting: ﹣3mm/+3mm
● Base Adjusting: ﹣4.5mm/+4.5mm
