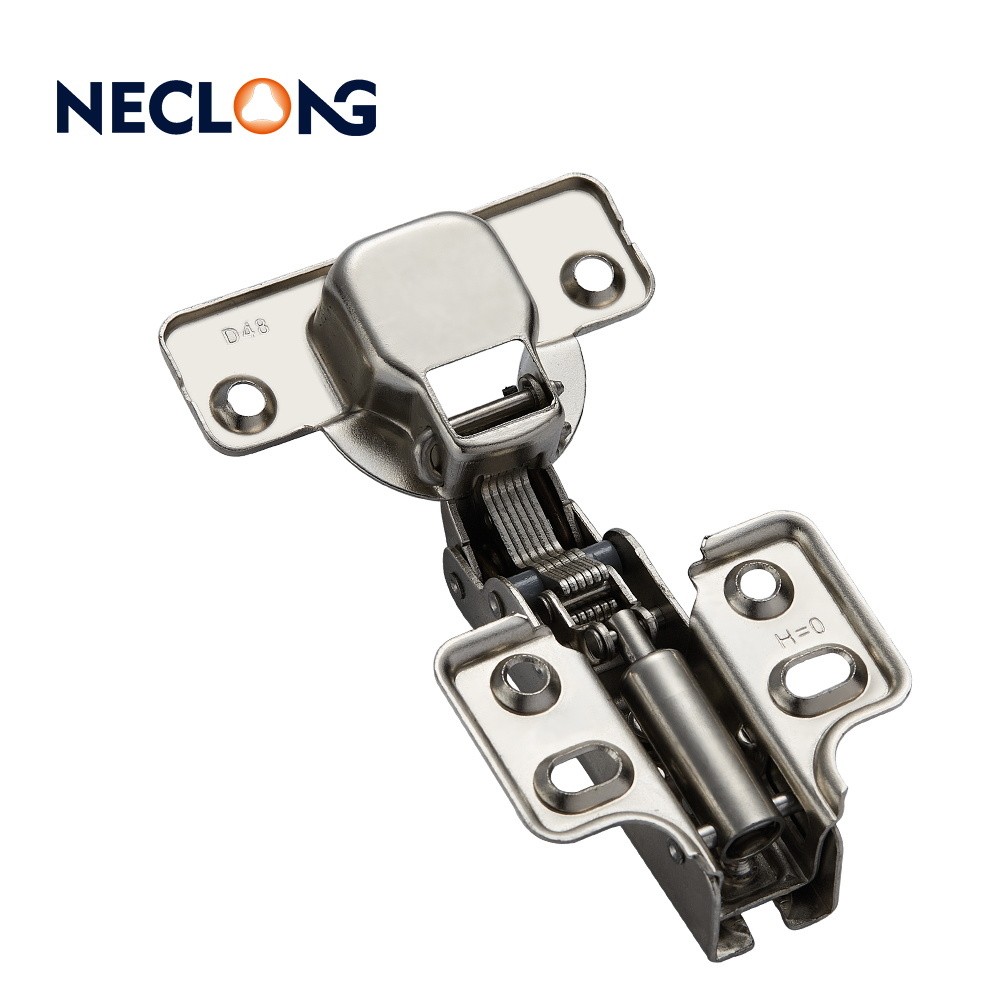

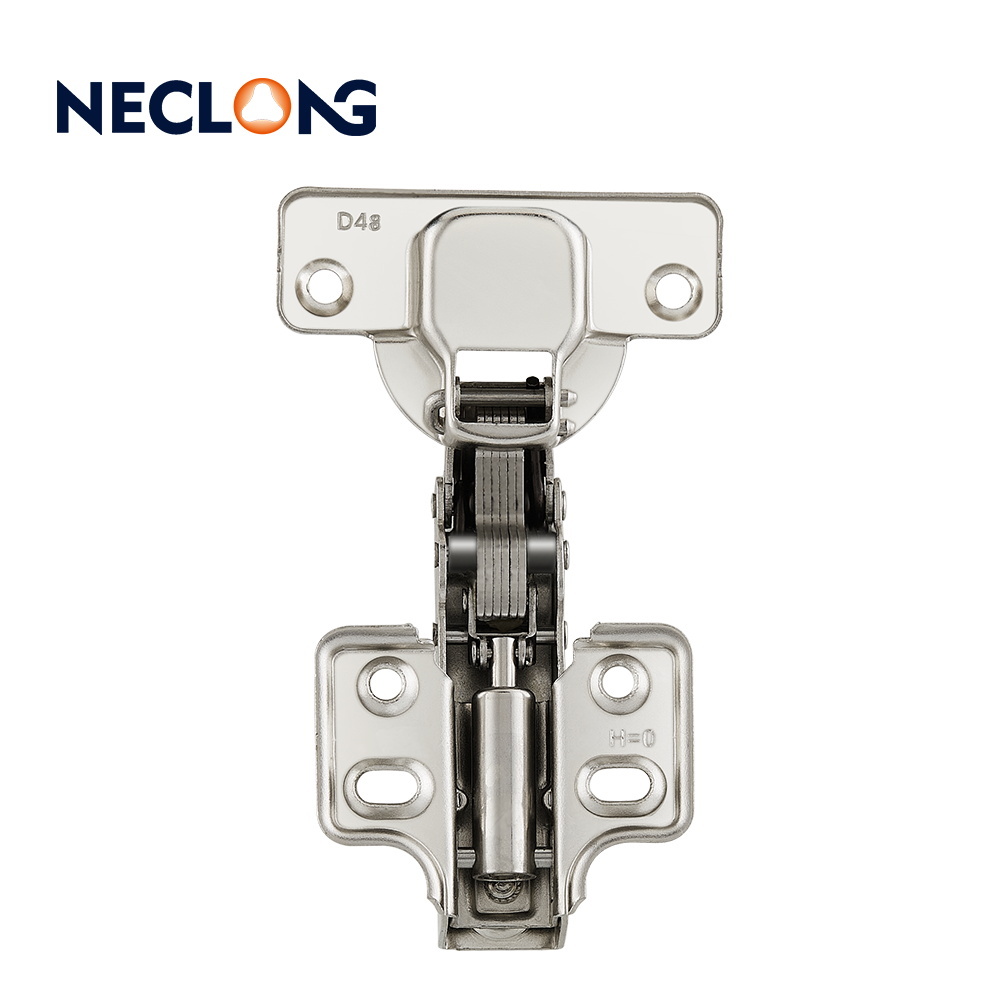

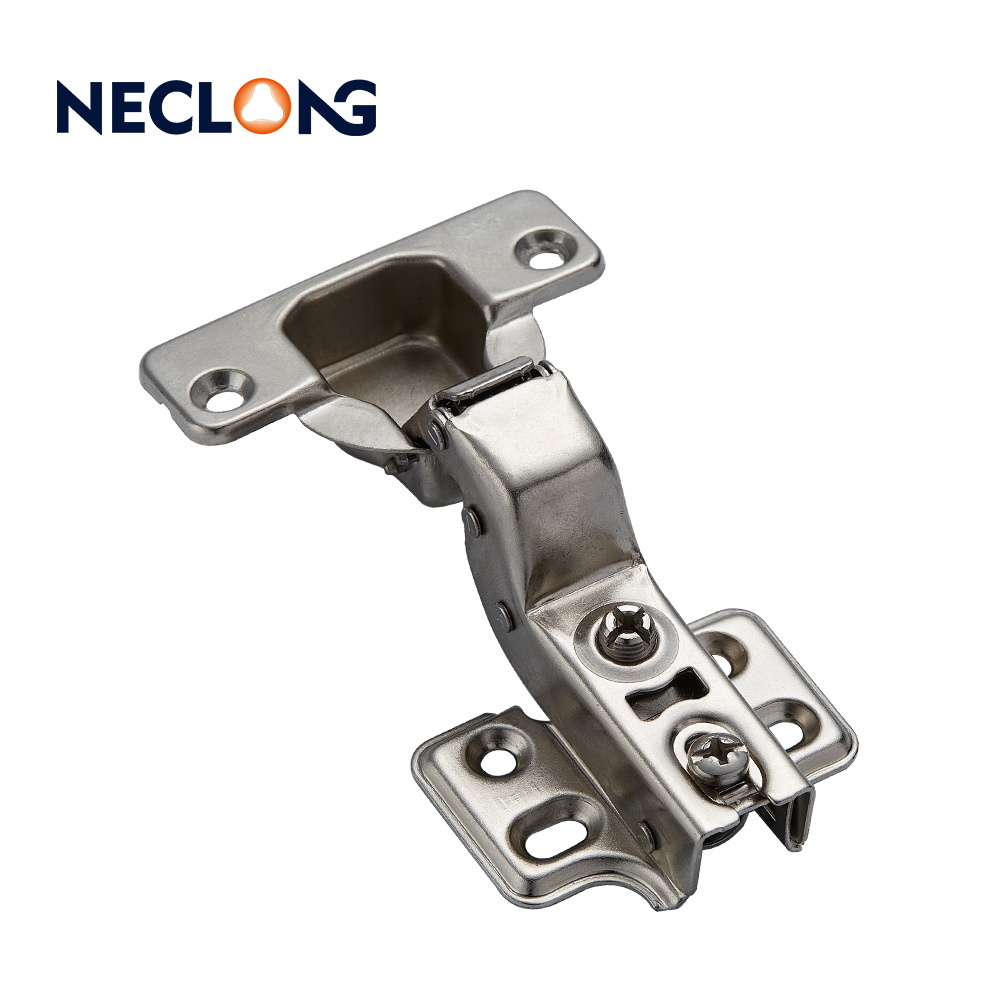

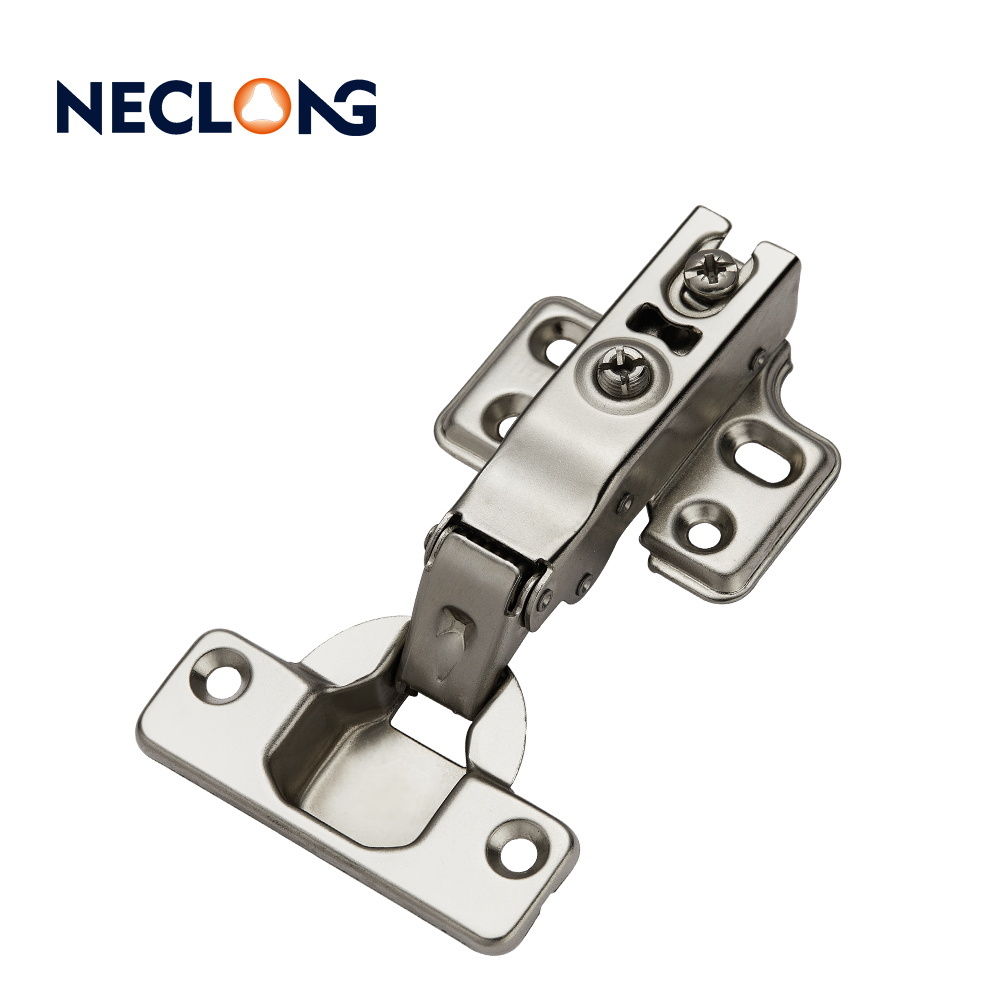

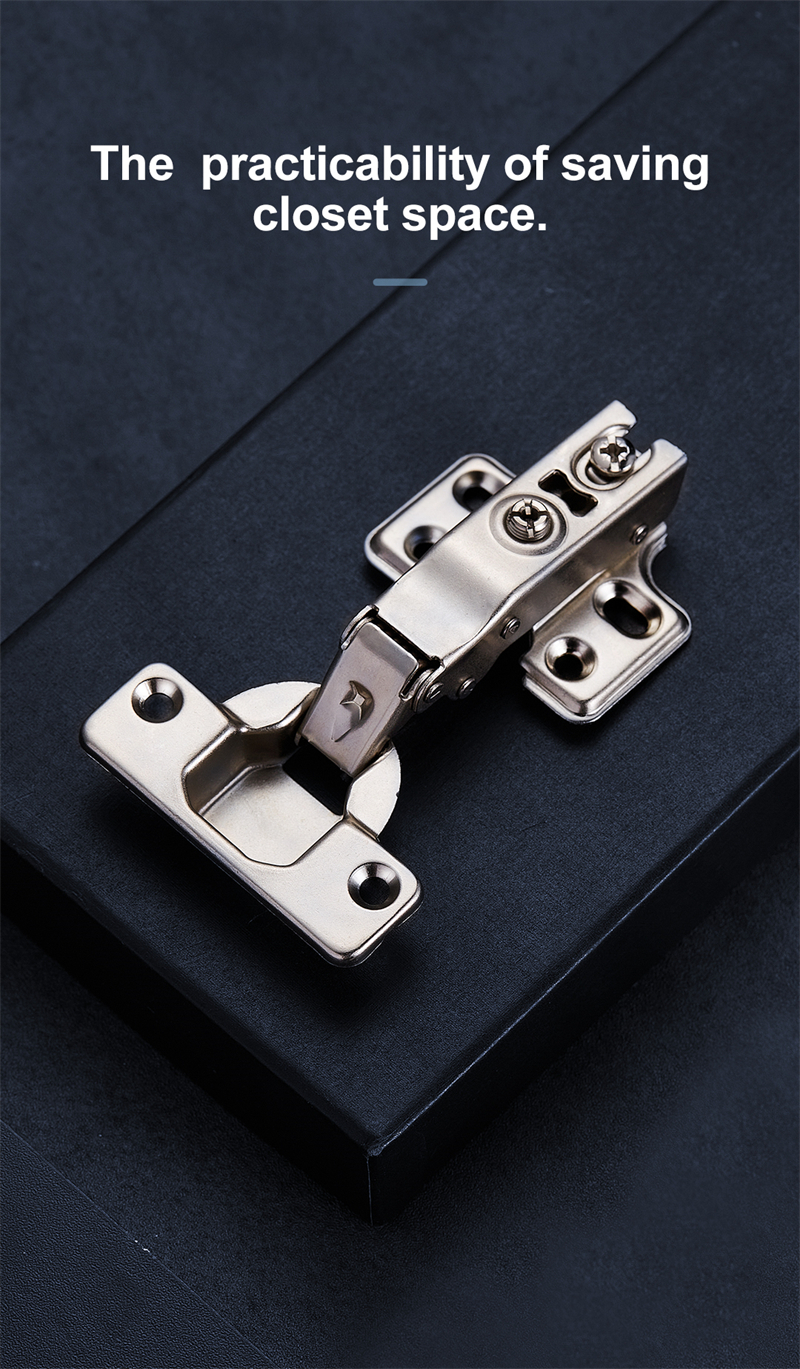

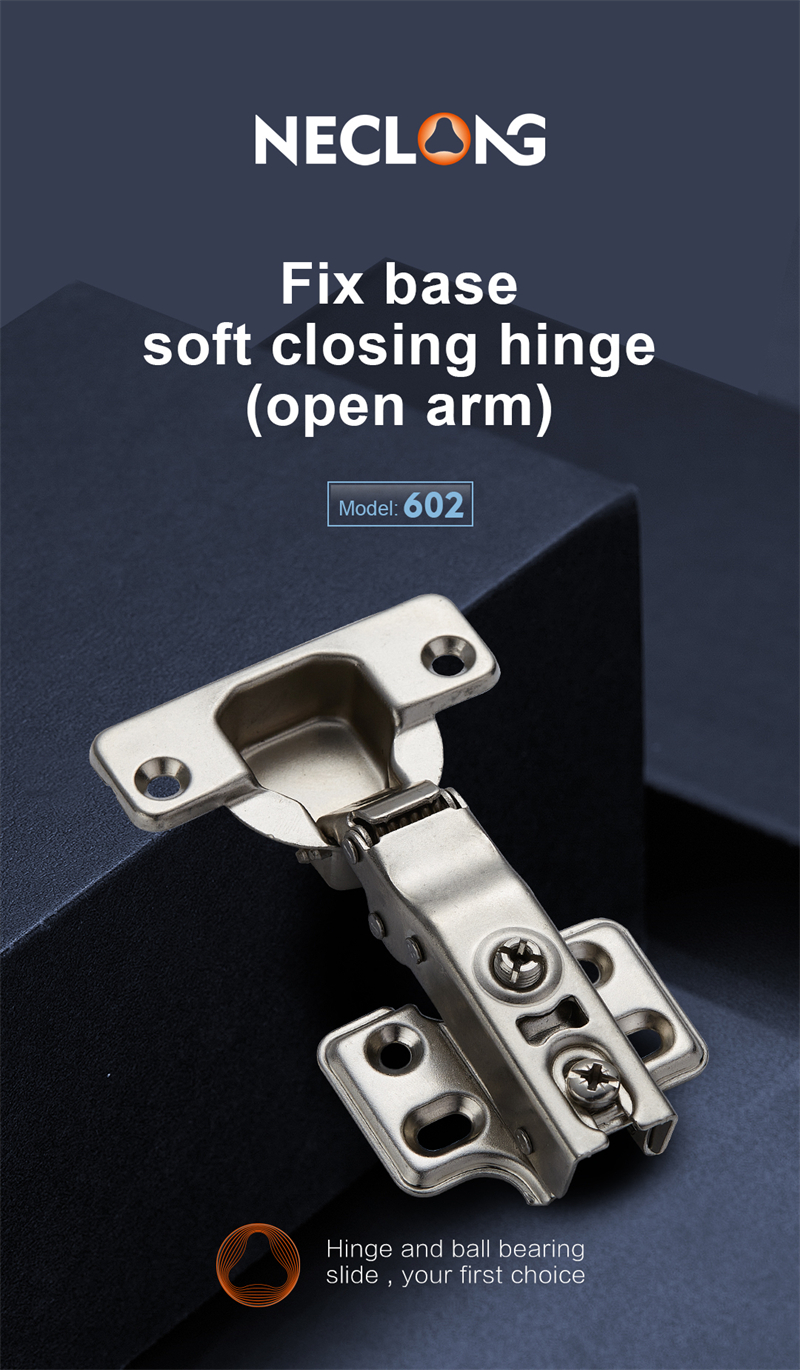

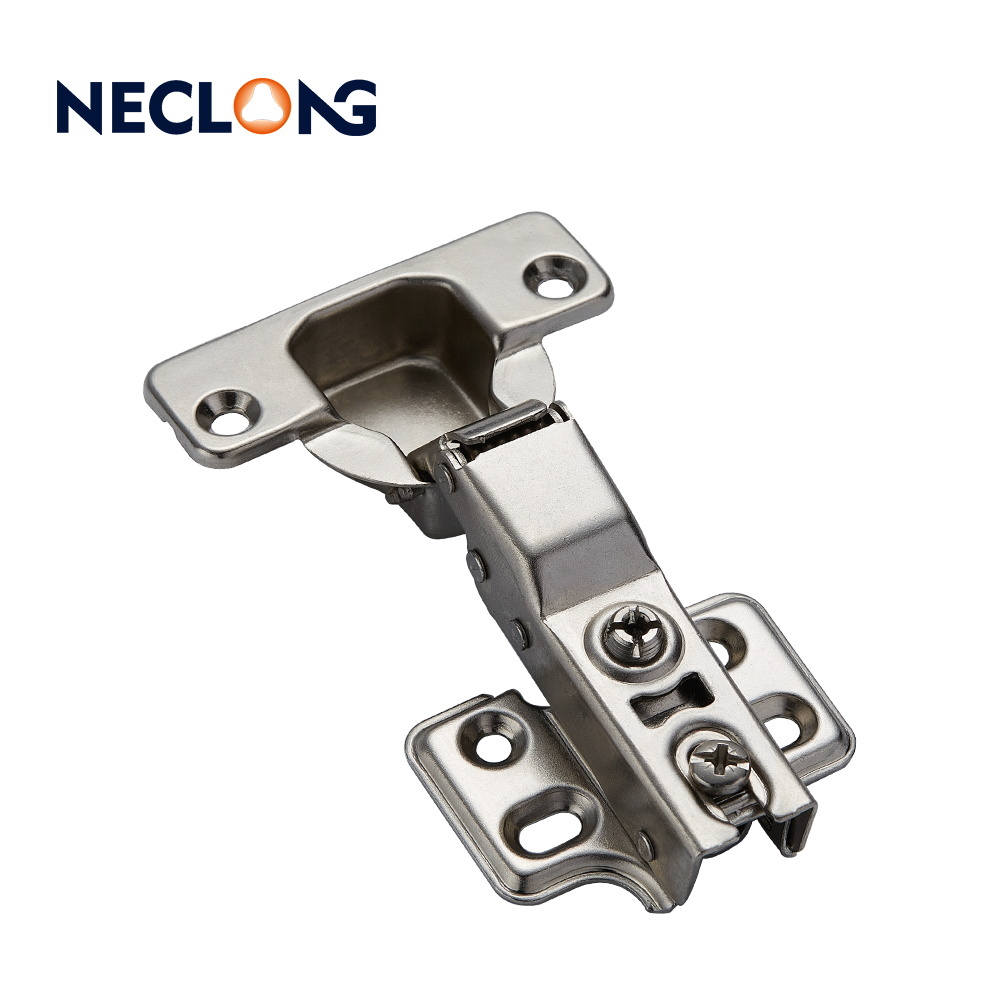

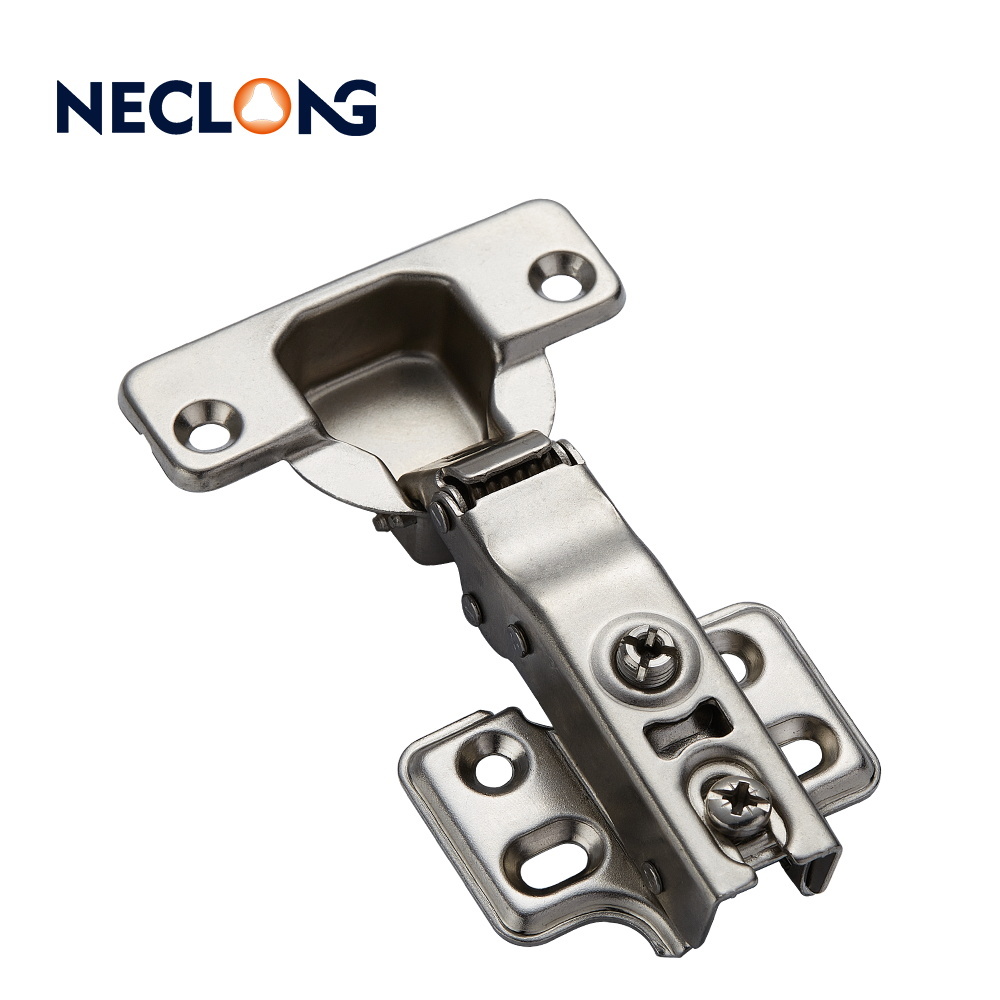

Fix Base Soft Closing Hinge 35mm Cup Hydraulic Cabinet Door Hinge Concealed Furniture Hardware

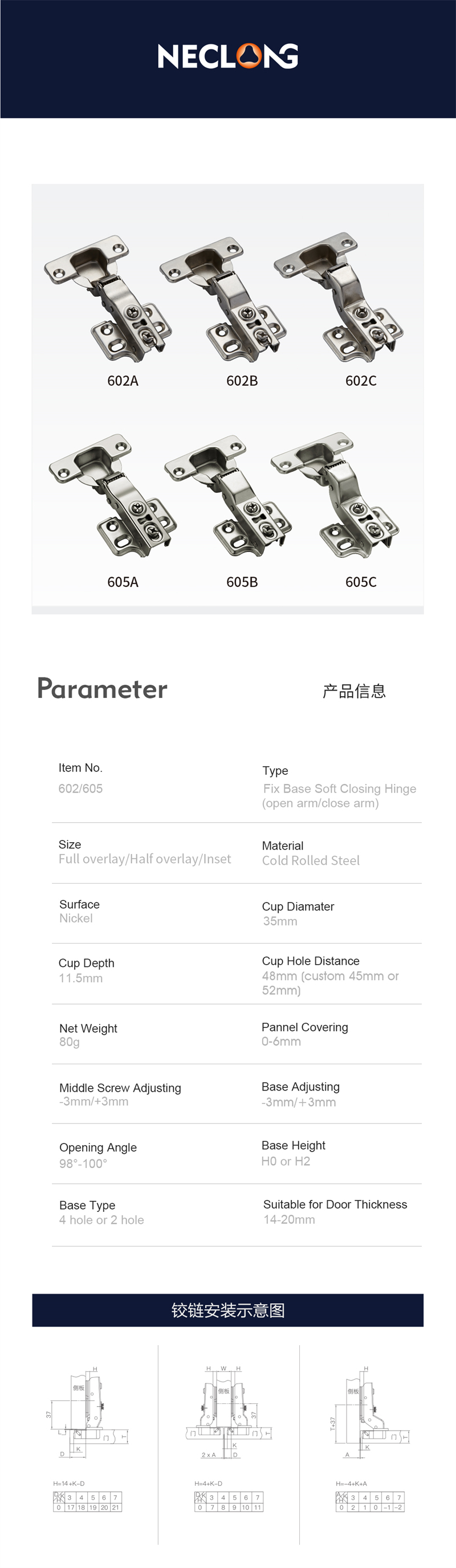

● Product Type: Fix Base Soft Closing Hinge

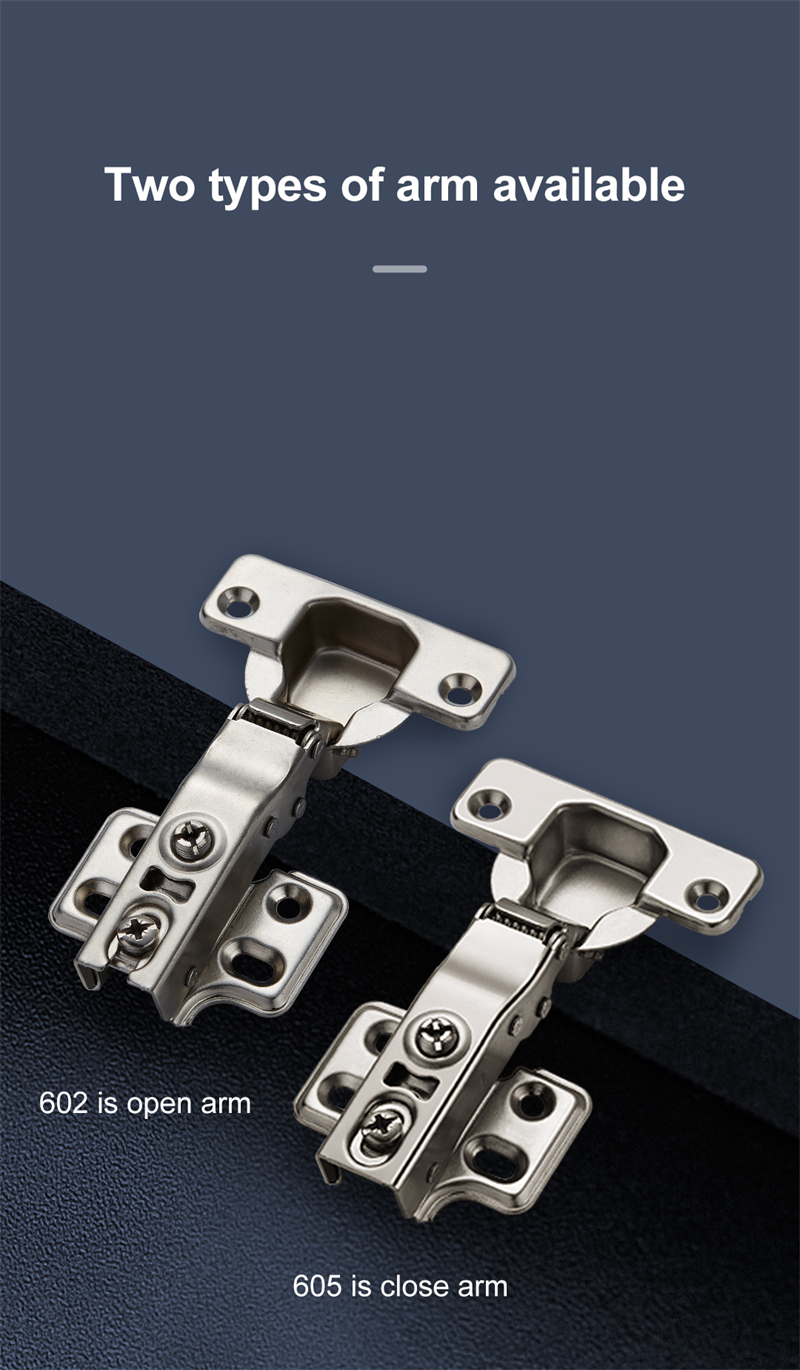

● Item No.: 602(Open Arm)/605(Close Arm)

● Size: Full overlay/ Half overlay/ Inset

● Material: Cold rolled steel

● Surface: Nickel

● Cup Diamater: 35mm

● Cup Depth: 11.5mm

● Opening Angle: 98°-100°

● Cup Hole Distance: 48mm (custom 45mm or 52mm)

● Base Type: 4 hole/2 hole

● Suitable for Door Thickness: 14-20mm

● Net Weight: 74g±1g

● Base Height: H0/H2

● Pannel Covering: 0-7mm

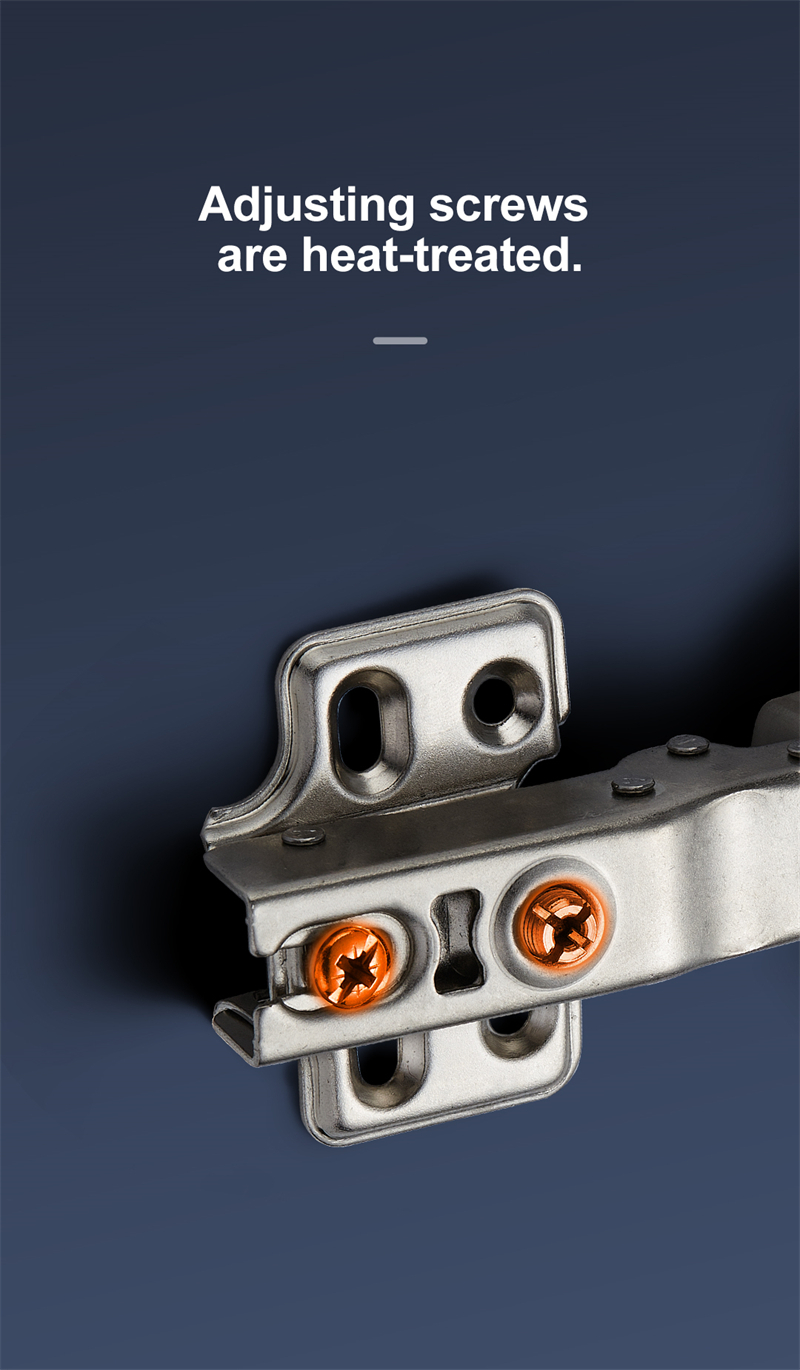

● Middle Screw Adjusting: ﹣3mm/+3mm

● Base Adjusting: ﹣3mm/+3mm

● Ball Bearing Slide
